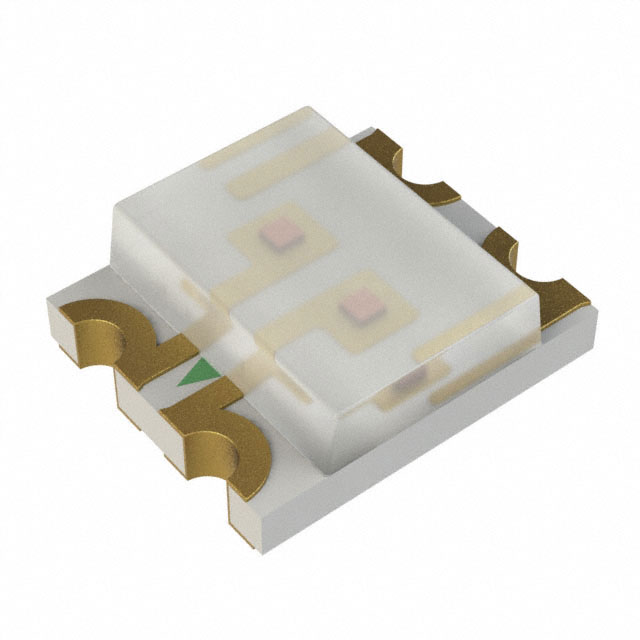

HSMF-C15A Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED AMBER/RED DIFFUSED SMD
| Part | Supplier Device Package | Configuration | Current - Test | Wavelength - Dominant | Lens Style | Lens Transparency | Millicandela Rating [custom] | Millicandela Rating [custom] | Viewing Angle | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Lens Size [x] | Lens Size [y] | Package / Case | Mounting Type | Height (Max) [Max] [z] | Lens Color | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | SMD | Independent | 20mA Amber 20mA Red | 592nm Amber 632nm Red | Rectangle with Flat Top | Diffused | 55 mcd | 79 mcd | 170 ° | 1.9 V | 2 V | 2 mm | 2.7 mm | 4-SMD No Lead | Surface Mount | 1.2 mm | White | Amber Red |
