8762MN Series

Catalog

CABLE 2CON 20AWG BLUE SHLD

Part	Shield Coverage	Shield Material	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Usage	Shield Type	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Conductors	Features	Length	Length	Ratings	Jacket Color	Conductor Insulation	Length [x]	Length [x]

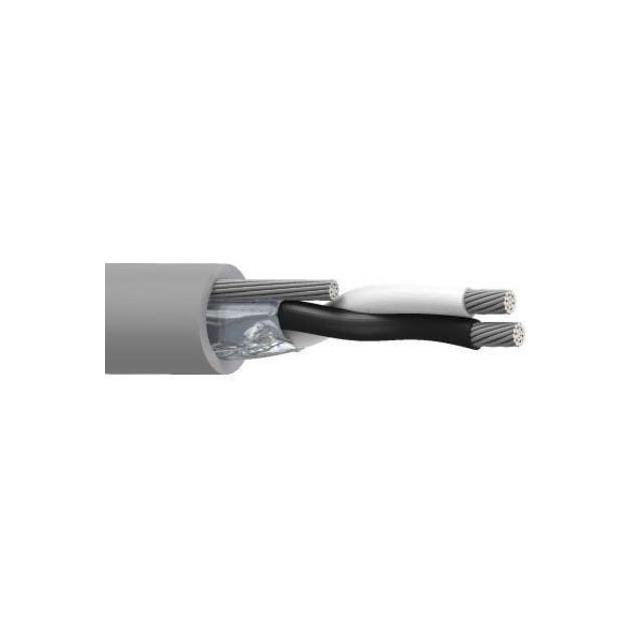

Belden Inc. 8762MN 0061000	100 %	Aluminum	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	300 VDC	20 AWG	26	34 AWG	Copper Tinned	Audio Control Instrumentation	Foil	Multi-Conductor	0.149 "	3.78 mm	80 °C	-20 ░C	2	Drain Wire	304.8 m	1000 ft	UL Style 2937	Blue	Polypropylene (PP)
Belden Inc. 8762MN 006100	100 %	Aluminum	Poly-Vinyl Chloride (PVC)	0.406 mm	0.016 in	300 VDC	20 AWG	26	34 AWG	Copper Tinned	Audio Control Instrumentation	Foil	Multi-Conductor	0.149 "	3.78 mm	80 °C	-20 ░C	2	Drain Wire			UL Style 2937	Blue	Polypropylene (PP)	100 ft	30.5 m
