SC197 Series

Catalog

DC/DC SWITCHING REGULATOR, BUCK, 2 OUTPUT, 2.9 V TO 5.5 V IN, 3.3 V/500 MA OUT, 4.2 MHZ, MLPQ-18

Part	Voltage - Input (Max) [Max]	Frequency - Switching	Package / Case	Function	Voltage - Output (Max) [Max]	Synchronous Rectifier	Number of Outputs	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Mounting Type	Topology	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Output Type	Supplier Device Package

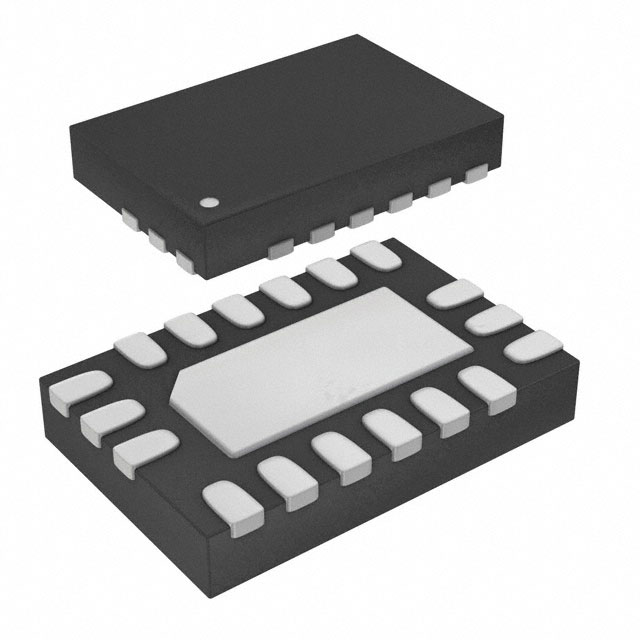

Semtech Corporation SC197ULTRT	5.5 V	3.5 MHz	18-UFQFN Exposed Pad	Step-Down	3.3 V		2	500 mA	85 C	-40 ¯C	Positive	Surface Mount	Buck	0.8 V	2.9 V	Programmable	18-MLPQ-UT (2x3)
