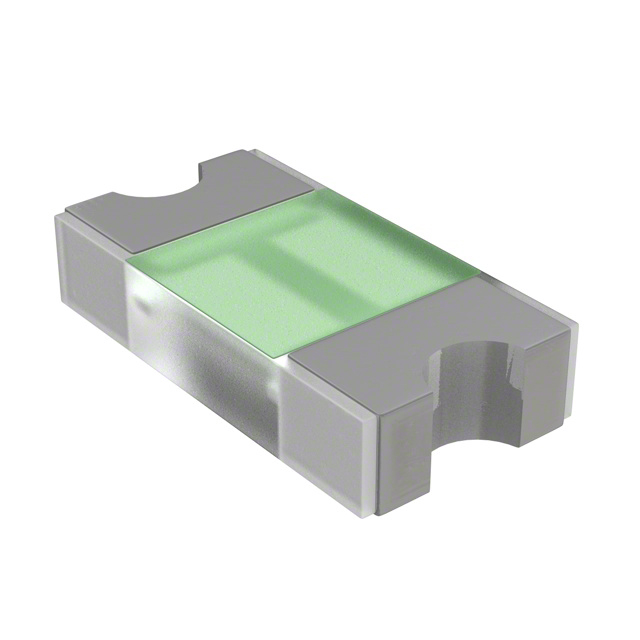

0494004 Series

PROTECTOR SLIM 0603 32V 4A

Catalog

PROTECTOR SLIM 0603 32V 4A

Part	DC Cold Resistance	Response Time	Current Rating (Amps)	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Mounting Type	Fuse Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage Rating - AC	Package / Case	Package / Case	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Melting I²t
LITTELFUSE 0494004.NRHF	0.013 Ohms	Fast Blow	4 A	32 V	35 A	Surface Mount	Board Mount (Cartridge Style Excluded)	1.6 mm	0.012 in	0.31 mm	0.063 "	0.032 in	0.81 mm	32 V	1608 Metric	0603	CSA UR	90 °C	-50 °C	0.576
LITTELFUSE 0494004.NR	0.013 Ohms	Fast Blow	4 A	32 V	35 A	Surface Mount	Board Mount (Cartridge Style Excluded)	1.6 mm	0.012 in	0.31 mm	0.063 "	0.032 in	0.81 mm	32 V	1608 Metric	0603	CSA UR	90 °C	-50 °C	0.576

Catalog

PROTECTOR SLIM 0603 32V 4A

Description

The 494 Series Fast-Acting SMF is ultra small thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.
