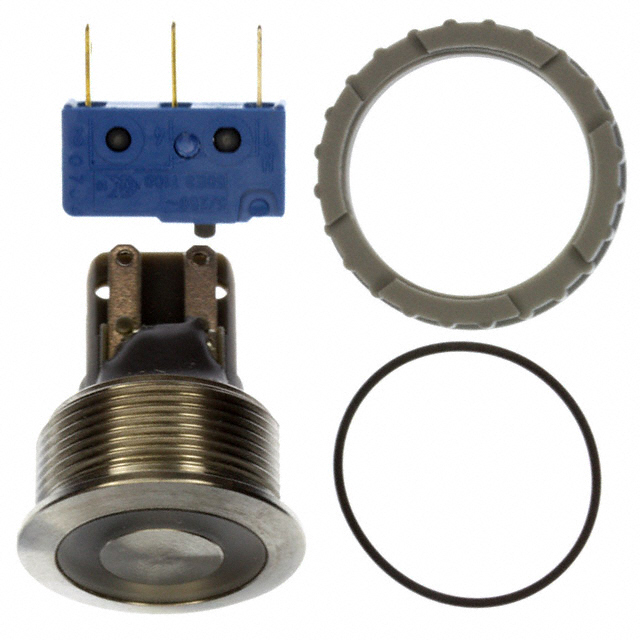

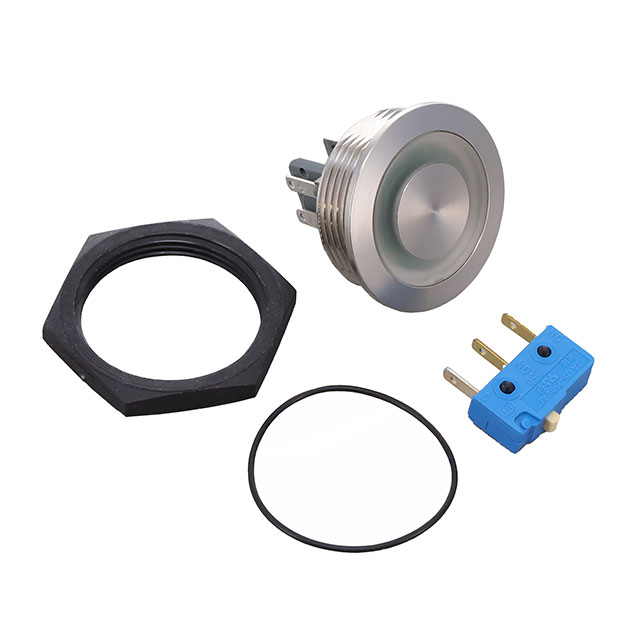

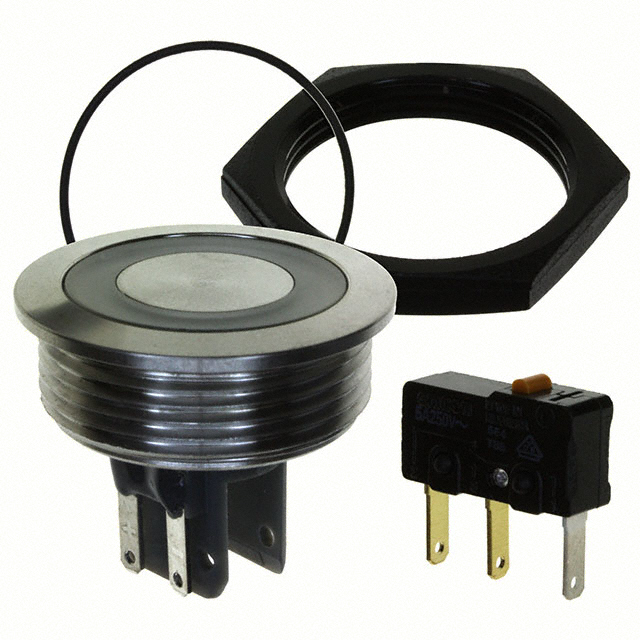

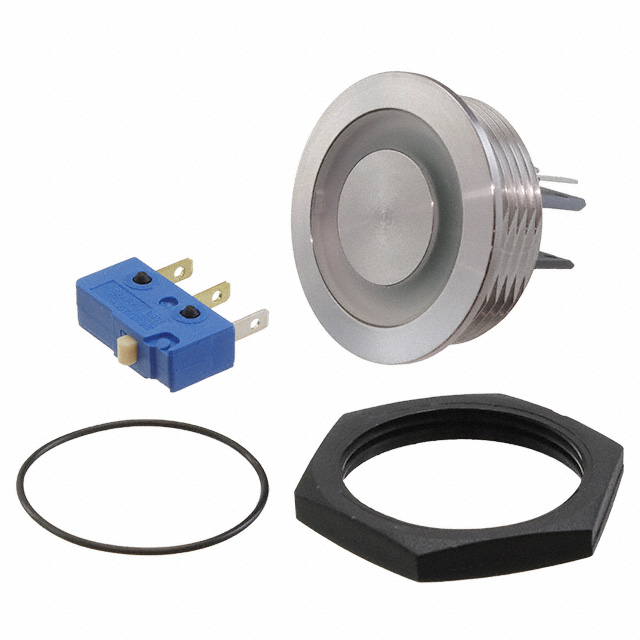

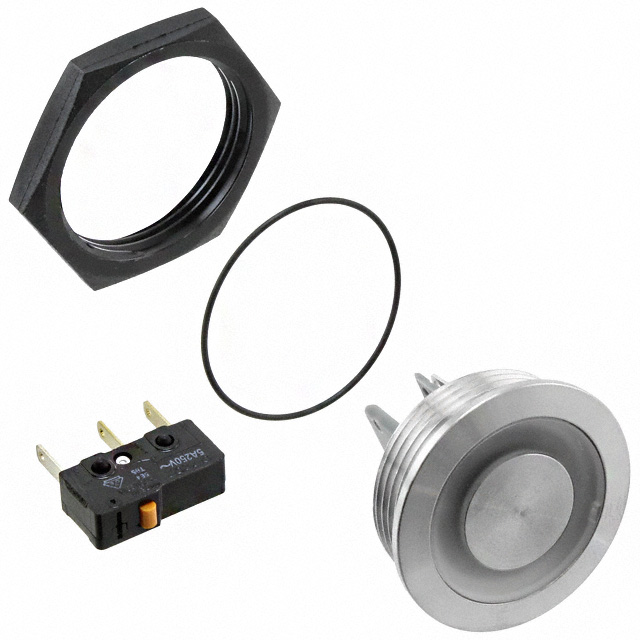

1241.6664 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Color - Actuator/Cap | Illumination Type, Color | Ingress Protection | Type | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Current Rating (Amps) | Actuator Marking | Actuator Type | Panel Cutout Dimensions [diameter] | Circuit | Mounting Type | Illumination Voltage (Nominal) | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Silver | LED Red | IP40 | Anti-Vandal Illuminated | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | On-Mom | 5 A | No Marking | Button Flush Round | 30.1 mm | SPDT | Panel Mount Front | 24 V | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | Silver | LED Red | IP40 | Anti-Vandal Illuminated | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | On-Mom | 100 mA | No Marking | Button Flush Round | 30.1 mm | SPDT | Panel Mount Front | 24 V | 30 V | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | Silver | Green LED | IP40 | Anti-Vandal Illuminated | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | On-Mom | 100 mA | No Marking | Button Flush Round | 30.1 mm | SPDT | Panel Mount Front | 24 V | 30 V | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Silver | Green LED | IP40 | Anti-Vandal Illuminated | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | On-Mom | 5 A | No Marking | Button Flush Round | 30.1 mm | SPDT | Panel Mount Front | 24 V | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | 125 V | Silver | Blue LED | IP40 | Anti-Vandal Illuminated | Quick Connect - 0.110" (2.8mm) | 85 °C | -25 °C | On-Mom | 5 A | No Marking | Button Flush Round | 30.1 mm | SPDT | Panel Mount Front | 24 V |
