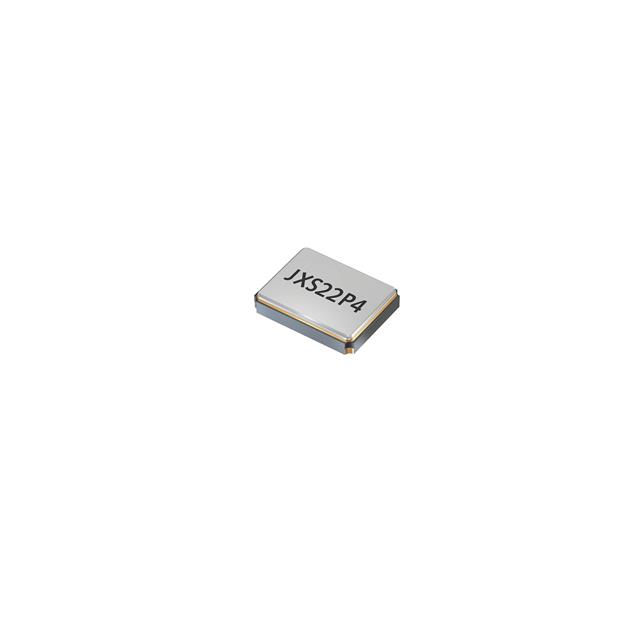

JXS22P4 Series

Catalog

CRYSTAL 30MHZ 12PF SMD

Part	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Load Capacitance	Operating Mode	Mounting Type	Type	Frequency Stability	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	ESR (Equivalent Series Resistance)	Frequency Tolerance
Jauch Quartz Q 30,0-JXS22P4-12-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	30 MHz	12 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 26,0-JXS22P4-8-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	26 MHz	8 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 48,0-JXS22P4-12-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	48 MHz	12 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 24,0-JXS22P4-12-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	24 MHz	12 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 26,0-JXS22P4-12-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	26 MHz	12 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 25,0-JXS22P4-8-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	25 MHz	8 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
Jauch Quartz Q 27,0-JXS22P4-12-20/20-T1-FU-AEC-LF	AEC-Q200	0.6 mm	0.024 in	27 MHz	12 pF	Fundamental	Surface Mount	MHz Crystal	20 ppm	2.5 mm	0.079 in	0.098 in	2 mm	85 °C	-40 C	4-SMD No Lead	40 Ohms	20 ppm
