G12KP Series
Manufacturer: NKK Switches
Catalog
PROCESS SEALED ULTRA-MINIATURE ROCKER
| Part | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Features | Voltage Rating - AC | Actuator Type | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Actuator Marking | Approval Agency | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 100000 Cycles | 85 °C | -25 °C | Through Hole | SPDT | Process Sealed | 28 V | Concave | PC Pin | 28 V | 0.4 VA | Red | No Marking | CSA UL | On-On |
 NKK Switches | 100000 Cycles | 100000 Cycles | 85 °C | -25 °C | Through Hole | SPDT | Process Sealed | 28 V | Concave | PC Pin | 28 V | 0.4 VA | Black | No Marking | CSA UL | On-On |

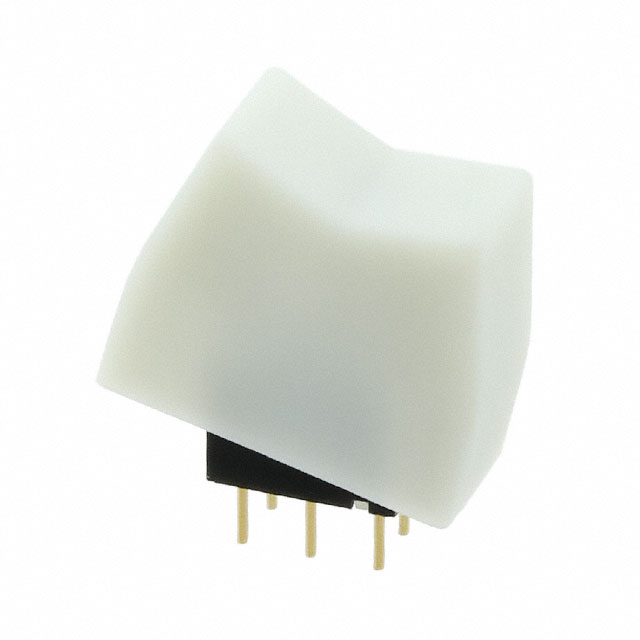

 NKK Switches | 100000 Cycles | 100000 Cycles | 85 °C | -25 °C | Through Hole | SPDT | Process Sealed | 28 V | Concave | PC Pin | 28 V | 0.4 VA | White | No Marking | CSA UL | On-On |
