090151 Series

Manufacturer: Molex

Catalog

CONN RCPT 4POS 0.1 GOLD PCB

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Applications	Number of Rows	Insulation Color	Contact Material	Fastening Type	Number of Positions Loaded	Contact Finish - Mating	Insulation Material	Insulation Height	Insulation Height	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Voltage Rating	Number of Positions	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Molex 0901512204	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	15 µin	0.38 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	4	Receptacle	105 ░C	-55 °C	Square	3 µm	118.1 µin

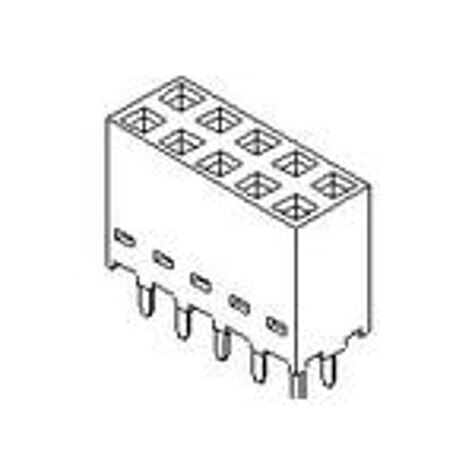

Molex 0901512310	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	30 Áin	0.76 Ám	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	10	Receptacle	105 ░C	-55 °C	Square	3 µm	118.1 µin

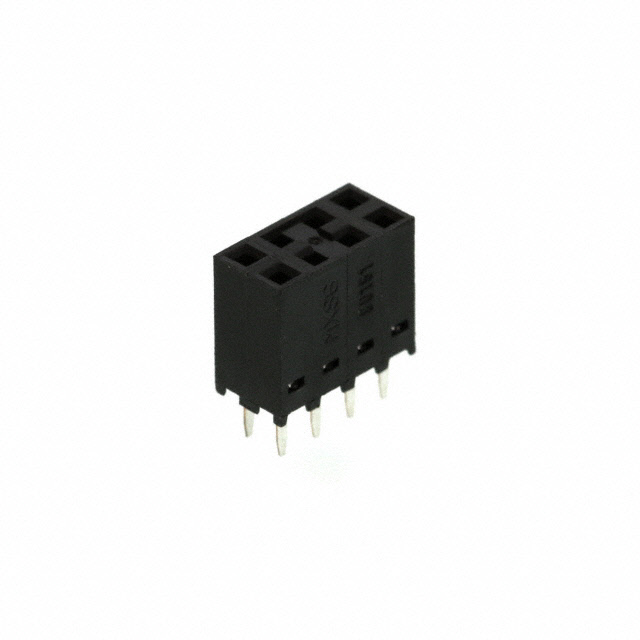

Molex 0901512108	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	40 µin	1.02 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All		Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	8	Receptacle	105 ░C	-55 °C	Square	1.02 Ám	40 Áin
Molex 0901512260	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	15 µin	0.38 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	60	Receptacle	105 ░C	-55 °C	Square	3 µm	118.1 µin
Molex 0901512160	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	40 µin	1.02 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All		Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	60	Receptacle	105 ░C	-55 °C	Square	1.02 Ám	40 Áin

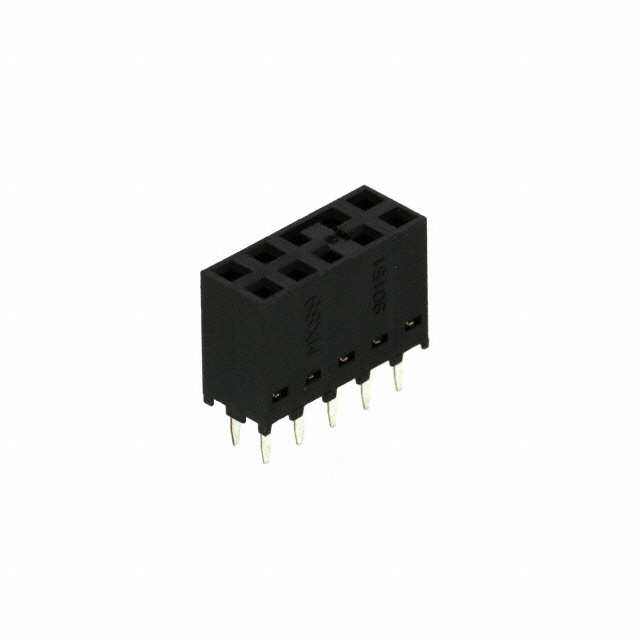

Molex 0901512110	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	40 µin	1.02 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All		Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	10	Receptacle	105 ░C	-55 °C	Square	1.02 Ám	40 Áin
Molex 0901512244	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	15 µin	0.38 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	44	Receptacle	125 °C	-55 °C	Square	0.3 µm	12 µin
Molex 0901512326	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	30 Áin	0.76 Ám	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	26	Receptacle	105 ░C	-55 °C	Square	3 µm	118.1 µin
Molex 0901512230	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	15 µin	0.38 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All	Gold	Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	30	Receptacle	105 ░C	-55 °C	Square	3 µm	118.1 µin
Molex 0901512104	2.54 mm	0.1 in	Through Hole	0.114 in	2.9 mm	3 A	40 µin	1.02 µm	Solder	Automotive General Purpose Lighting Medical Telecommunications	2	Black	Phosphor Bronze	Push-Pull	All		Polyester Glass Filled	0.335 "	8.51 mm	Female Socket	0.1 in	2.54 mm	Tin	350 V	4	Receptacle	105 ░C	-55 °C	Square	1.02 Ám	40 Áin
