TR9CX3750 Series

Catalog

AC/DC DESKTOP ADAPTER 48V 180W

Part	Polarization	Voltage - Output	Region Utilized	No Load Power Consumption	Efficiency	Applications	Input Type	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Connector	Form	Output Connector [x]	Output Connector [diameter]	Output Connector	Current - Output (Max) [Max]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)

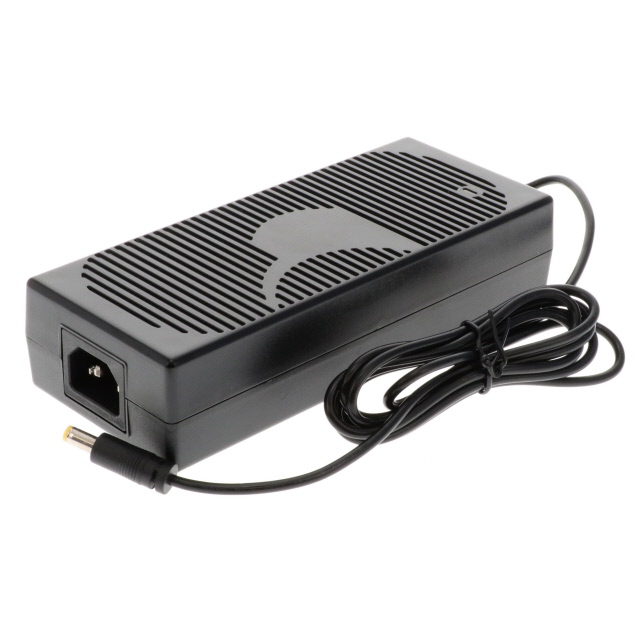

GlobTek, Inc. TR9CX3750CCPIMR6B	Positive Center	48 V	International	150 mW	CoC Tier 2 Level VI	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	264 VAC	90 VAC	1.5 m	59 in	6.95 in	176.5 mm	74 mm	2.91 in	40 mm	1.58 in	IEC 320-C14	Desktop (Class I)	11 mm	2.1 mm 5.5 mm	Barrel Plug	3.75 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	40 °C	-10 °C	180 W

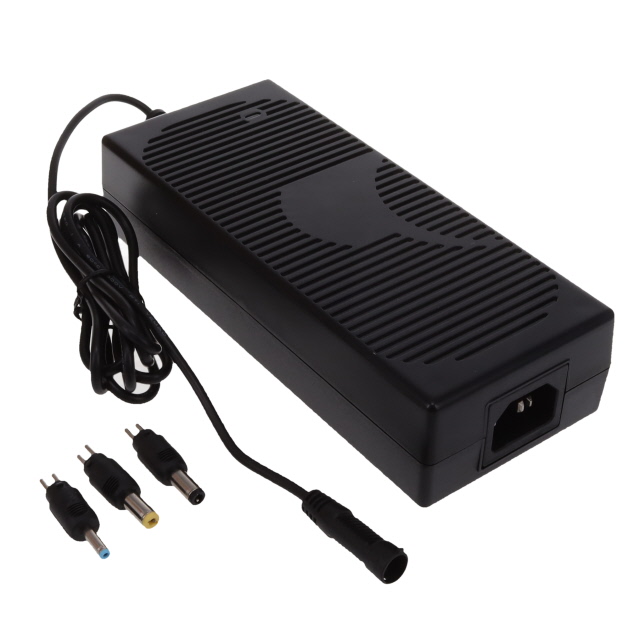

GlobTek, Inc. TR9CX3750T00CIMCFR6B		48 V	International	150 mW	CoC Tier 1 Level VI	Household Appliances ITE (Commercial) Medical	Cord (Sold Separately)	264 VAC	90 VAC	1.5 m	59 in	6.93 "	176 mm	74 mm	2.91 in	40 mm	1.58 in	IEC 320-C14	Desktop (Class I)			Barrel Plug Kit (1.3mm x 3.5mm	3.75 A	60335-1 60601-1 60950-1 62368-1	40 °C	-10 °C	180 W
