DT080AF Series
Manufacturer: Tri-Mag, LLC
Beta
⌘K

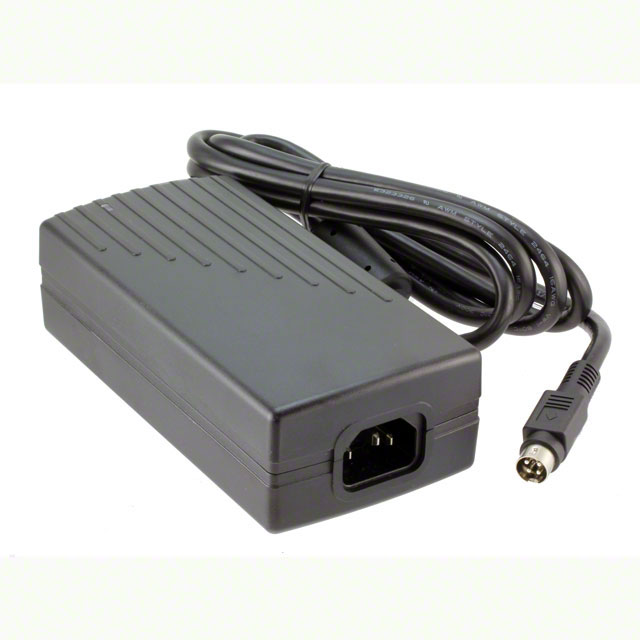

AC/DC DESKTOP ADAPTER 24V 77W
| Part | Weight | Weight | Power (Watts) | Voltage - Output | Form | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Applications | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized | Input Type | Output Connector | No Load Power Consumption | Input Connector | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tri-Mag, LLC | 1.1 lbs | 499 g | 77 W | 24 V | Desktop (Class I) | -20 ░C | 60 °C | 3.2 A | ITE (Commercial) Medical | 1.65 " 42 mm | 5.71 " 145 mm | 2.83 " 72 mm | 264 VAC | 90 VAC | International | Cord (Sold Separately) | Power DIN 4 Pin | 100 mW | IEC 320-C14 | CoC Tier 2 Level VI |
