960206 Series
Manufacturer: 3M (TC)
Beta
⌘K

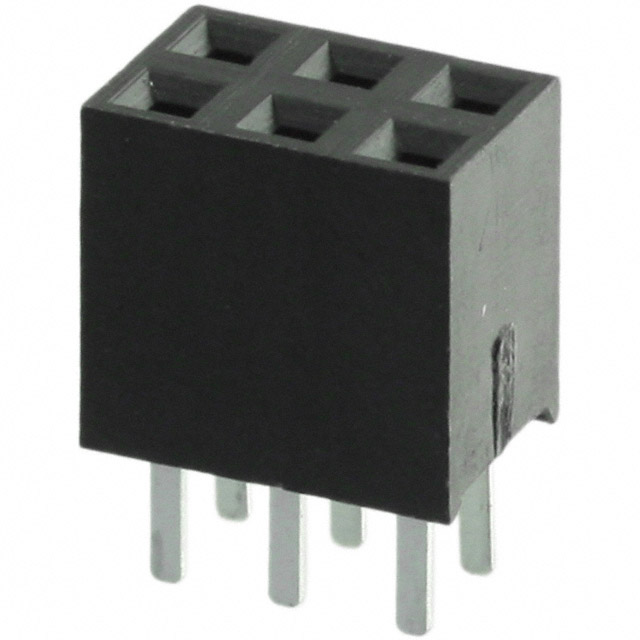

CONN RCPT 6POS 0.1 GOLD PCB
| Part | Contact Type | Insulation Material | Termination | Contact Finish - Post | Number of Positions Loaded | Current Rating (Amps) | Insulation Color | Material Flammability Rating | Contact Length - Post | Contact Length - Post | Connector Type | Contact Shape | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Voltage Rating | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Female Socket | Thermoplastic | Solder | Tin | All | 2 A | Black | UL94 V-0 | 0.118 in | 3 mm | Receptacle | Square | 0.28 in | 7.1 mm | 0.1 in | 2.54 mm | Flash | 2 | Gold | 2.54 mm | 0.1 in | 1.02 Ám | 40 Áin | 6 | 1000 VDC | Through Hole | -25 °C | 105 ░C | Copper Alloy | Push-Pull |
