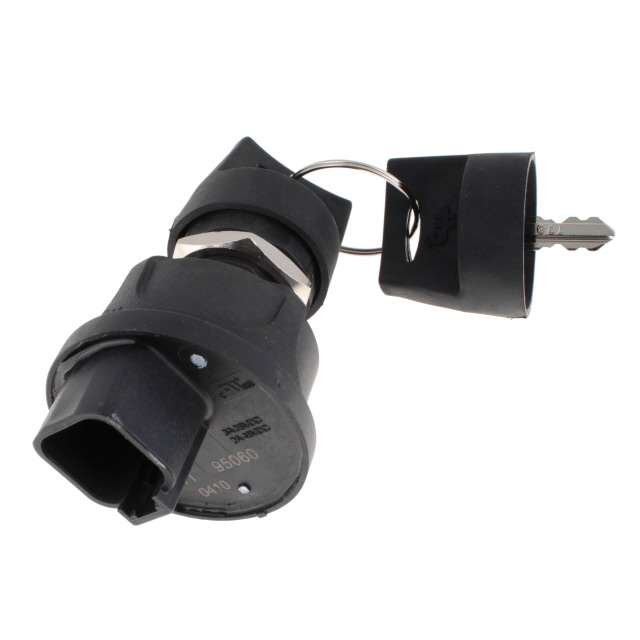

95060 Series

Catalog

SW ROT IGN 4POS PLSTC/ BULK

Part	Angle of Throw	Panel Cutout Dimensions [diameter]	Key Removable Positions	Termination Style	Actuator Type	Contact Timing	Number of Positions	Switch Function	Current Rating (Amps)	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products 95060	30 °	21.84 mm	2	Connector	Flat Key	Not Specified	4	On-Off-On-On	5 A	24 V

• Engineering thermoplastic construction

• Fully sealed contact area using O-rings and ultrasonic welding

• Integrated Sealed Deutsch Connector Interface

• Anti-restart and spring return options available

• Tested to SAE J259 for ignition switches

• Supplied with two matching keys, with or without boot

• Custom logo can be molded on the boot

• Multiple key codes or keyed alike available

• Key is removable only at the ‘Off’ position
