XW5T-P2 Series

Catalog

TERM BLK PUSHIN 2.5MM 1:2 1TIER

Part	Material Flammability Rating	Material - Insulation	Stripping Length	Terminal - Width [y]	Voltage - IEC	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Current - IEC	Voltage - UL	Number of Levels	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Positions

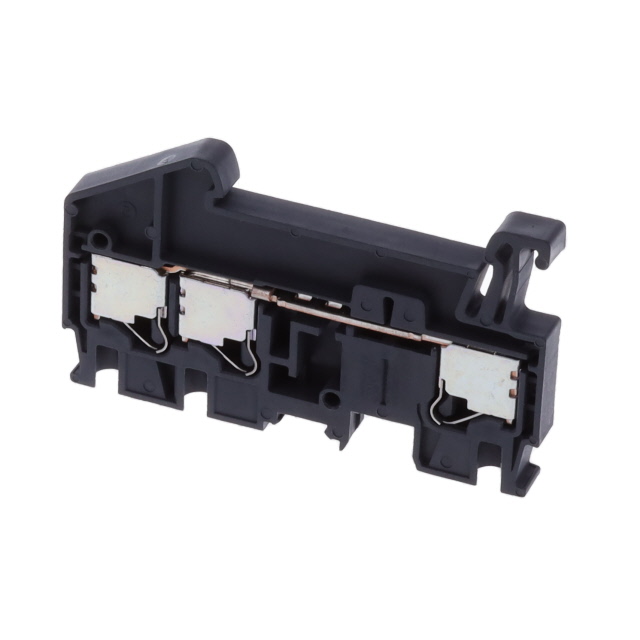

Omron Automation and Safety XW5T-P2.5-1.2-1	UL94 V-0	Nylon Polyamide (PA)	10 mm	5.2 mm	800 V	Gray	0.14 mm²	4 mm²	24 A	600 V	1	Feed Through	12 AWG	26 AWG	Push In
Omron Automation and Safety XW5T-P2.5-1.2-1BL	UL94 V-0	Nylon Polyamide (PA)	10 mm	5.2 mm	800 V	Blue	0.14 mm²	4 mm²	24 A	600 V	1	Feed Through	12 AWG	26 AWG	Push In	4 mm˛	0.14 mm˛
Omron Automation and Safety XW5T-P2.5-1.1-2BL	UL94 V-0	Nylon Polyamide (PA)	10 mm	5.2 mm	500 V	Blue	0.14 mm²	4 mm²	22 A	600 V	2	Feed Through	12 AWG	26 AWG	Push In	4 mm˛	0.14 mm˛	4
