C30659 Series

Catalog

SENSOR PHOTODIODE 1550NM TO8

Part	Active Area	Response Time	Wavelength	Responsivity @ nm	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Spectral Range [Max]	Spectral Range [Min]
Excelitas Technologies C30659-1550E-R08BH	0.005 mm²	2 ns	1550 nm	80 KV/W 900 KV/W	TO-8 Style 12 Leads	Through Hole	70 °C	-40 C	Avalanche	1700 nm	1100 nm

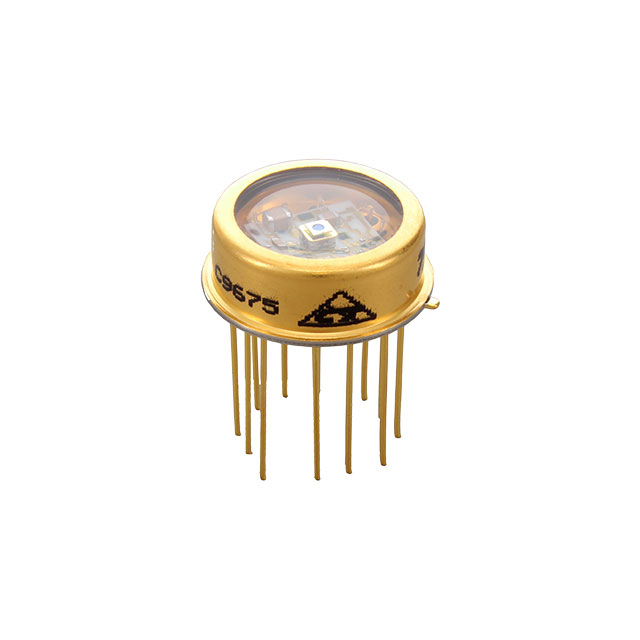

Excelitas Technologies C30659-900-R5BH	0.2 mm²	2 ns	900 nm	400 KV/W 460 KV/W	TO-8 Style 12 Leads	Through Hole	70 °C	-40 C	Avalanche	1100 nm	400 nm
Excelitas Technologies C30659-1060E-R8BH	0.5 mm²	2 ns	1064 nm	200 KV/W 370 KV/W	TO-8 Style 12 Leads	Through Hole	70 °C	-40 C	Avalanche	1100 nm	400 nm
