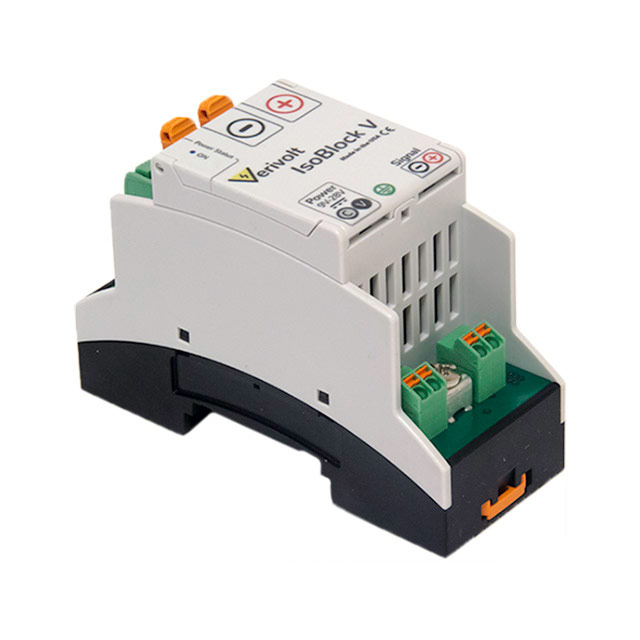

ISOBLOCK V-1C Series

Catalog

TRANSDUCER VOLTAGE 9-28VDC

Part	Type	Mounting Type	Accuracy	Output	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Input Range	Termination Style	Input Range [Min]	Input Range [Max]	Output [Min]	Output [Max]
Verivolt LLC ISOBLOCK V-1C (100V 5V)	Voltage Transducer	DIN Rail	0.2 %	5 V	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C	100 V	Spring Terminal
Verivolt LLC ISOBLOCK V-1C (500V 5V)	Voltage Transducer	DIN Rail	0.2 %	5 V	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C		Spring Terminal	-500 V	500 V
Verivolt LLC ISOBLOCK V-1C (1000V 5V)	Voltage Transducer	DIN Rail	0.2 %	5 V	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C		Spring Terminal	-1000 V	1000 V

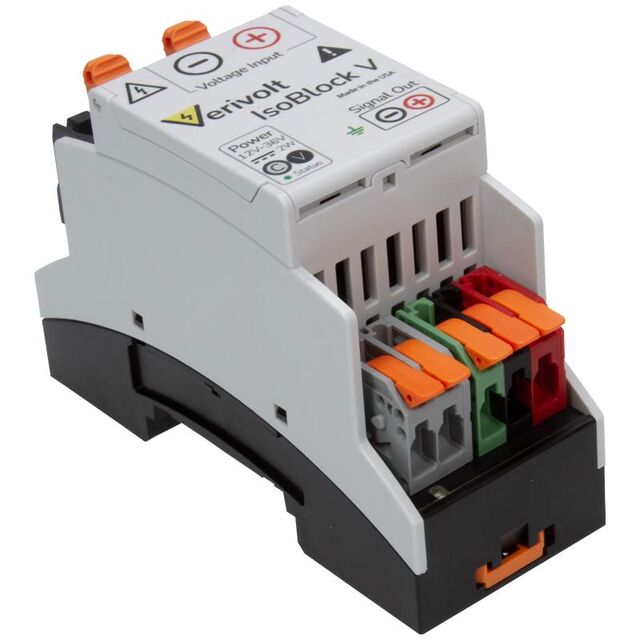

Verivolt LLC ISOBLOCK V-1C (1500V 10V0.1%)	Voltage Transducer	DIN Rail	0.1 %	10 VDC	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C	1500 V	Spring Terminal
Verivolt LLC ISOBLOCK V-1C (100V 10V)	Voltage Transducer	DIN Rail	0.2 %	10 VDC	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C	100 V	Spring Terminal
Verivolt LLC ISOBLOCK V-1C (500VAC 7VAC)	Voltage Transducer	DIN Rail	0.2 %		2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C		Spring Terminal	0 VAC	500 VAC	0 VAC	7 VAC
Verivolt LLC ISOBLOCK V-1C (1500V 5V)	Voltage Transducer	DIN Rail	0.2 %	5 V	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C	1500 V	Spring Terminal
Verivolt LLC ISOBLOCK V-1C (500V 10V)	Voltage Transducer	DIN Rail	0.2 %	10 VDC	2.8 µs	8 V	28 V	1500 V	-25 °C	70 °C		Spring Terminal	-500 V	500 V
Verivolt LLC ISOBLOCK V-1C (50V 10V)	Voltage Transducer	DIN Rail	0.2 %	10 VDC	2.8 µs	9 V	28 V	1500 V	-25 °C	70 °C		Spring Terminal	-50 V	50 V
