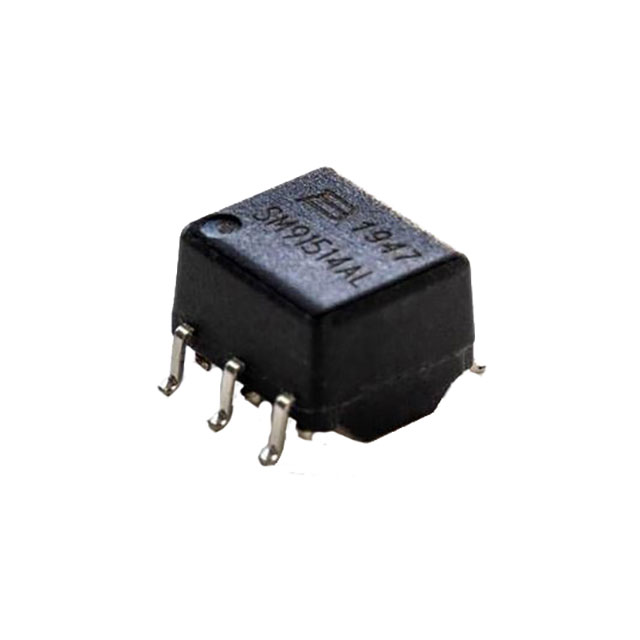

SM91514 Series
Manufacturer: Bourns Inc.
Beta
⌘K
BMS TRANSFORMER/CMC, 6PIN,SGL, 4.3KVDC /TAPE & REEL - 13" REEL ROHS COMPLIANT: YES
| Part | Grade | Turns Ratio - Primary:Secondary | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Inductance | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Automotive | 1:1 | 0.225 in | 5.72 mm | Surface Mount | 300 µH | AEC-Q200 | 125 °C | -40 C | 7.62 mm | 6.73 mm | 0.3 " | 0.265 in |
