PJRAN3 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCA JACK MONO 3.2MM R/A
| Part | Body Material | Current Rating (Amps) | Mounting Type | Connector Type | Gender | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Color | Signal Lines | Shielding | Internal Switch(s) | Industry Recognized Mating Diameter [diameter] | Insulation Color | Termination | Contact Material | Contact Material - Plating | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

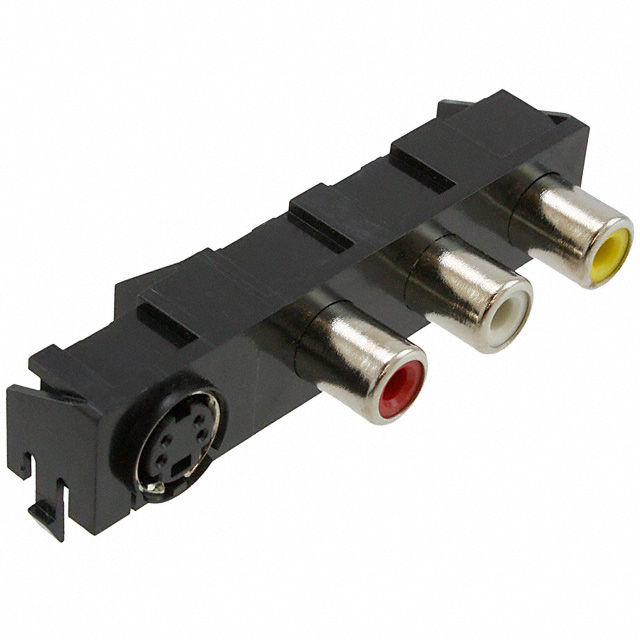

 Switchcraft Inc. | Copper Alloy | 2 A | Through Hole Right Angle | Phono (RCA) Jack | Female | Acrylonitrile Butadiene Styrene (ABS) | -25 °C | 85 °C | Black Silver | Mono | Unshielded | Single Switch | 3.2 mm 9 mm | Red White Yellow | Solder | Copper Alloy | Tin | 3 Sets of 2 Conductors | 9 |
 Switchcraft Inc. | Copper Alloy | 2 A | Through Hole Right Angle | Phono (RCA) Jack | Female | Acrylonitrile Butadiene Styrene (ABS) | -25 °C | 85 °C | Black Silver | Mono | Unshielded | Single Switch | 3.2 mm 9 mm | Blue Green Red | Solder | Copper Alloy | Tin | 3 Sets of 2 Conductors | 9 |
