G3T12A Series

Catalog

TOGGLE SWITCH, ON-ON, SPDT, NON ILLUMINATED, SURFACE MOUNT

Part	Actuator Material	Electrical Life	Switch Function	Voltage Rating - DC	Features	Actuator Type	Bushing Thread	Illumination	Termination Style	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Mounting Type	Actuator Length [x]

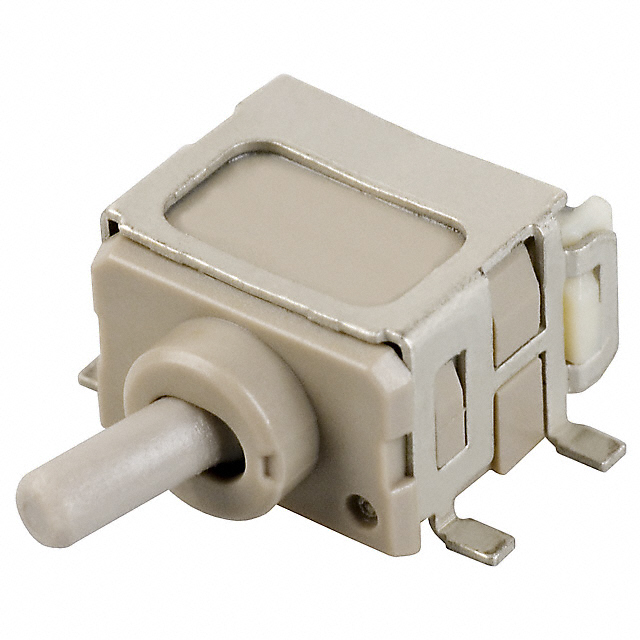

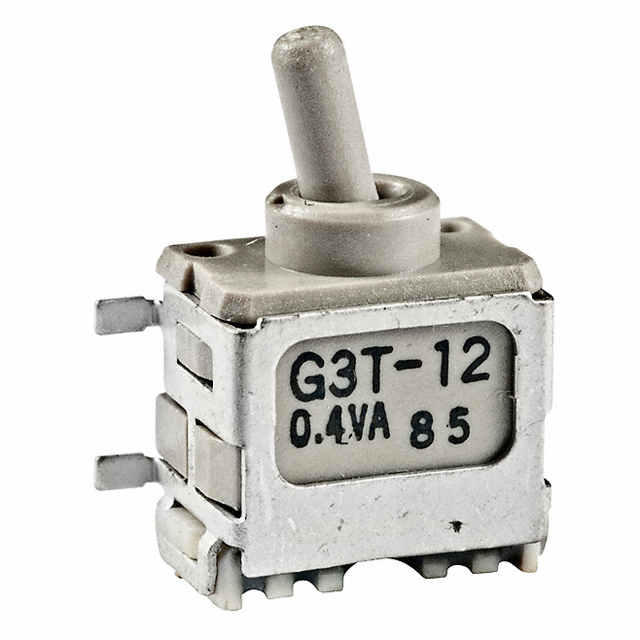

NKK Switches G3T12AH-R	Polyphenylene Sulfide (PPS)	50000 Cycles	On-On	28 V	Process Sealed	Standard Round	Unthreaded	Non-Illuminated	Gull Wing	28 V	85 °C	-30 ░C	0.4 VA	SPDT	Right Angle Surface Mount	3.81 mm

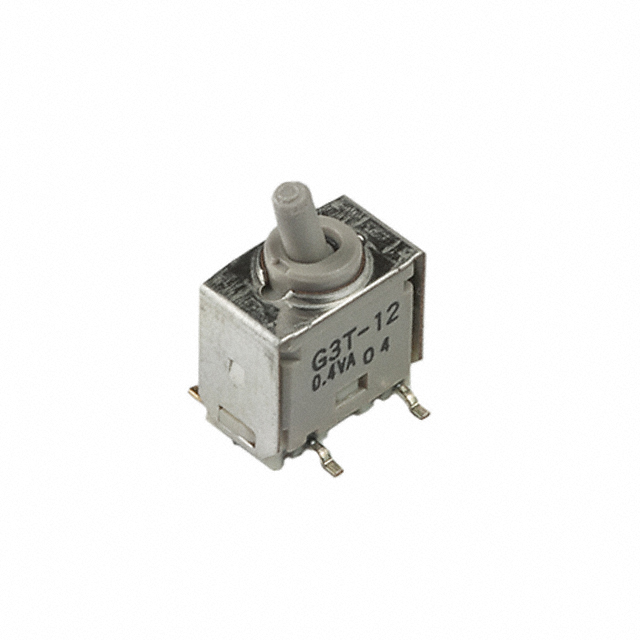

NKK Switches G3T12AP-S	Polyphenylene Sulfide (PPS)	50000 Cycles	On-On	28 V	Process Sealed	Standard Round	Unthreaded	Non-Illuminated	Gull Wing	28 V	85 °C	-30 ░C	0.4 VA	SPDT	Surface Mount	3.81 mm
