629-2WK Series
Manufacturer: EDAC Inc.
Beta
⌘K

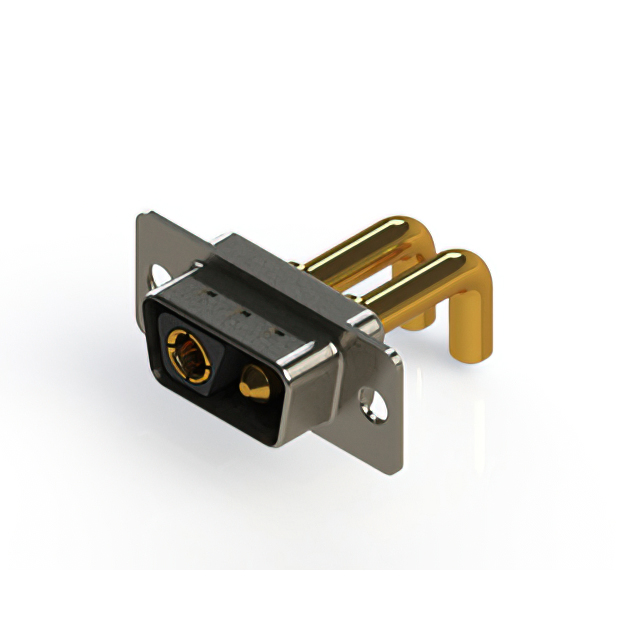

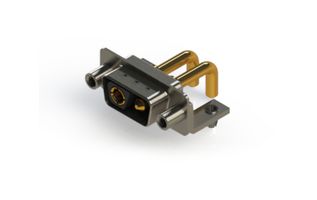

CONN D-SUB PLUG 2POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Voltage Rating | Current Rating (Amps) | Connector Type | Number of Positions | Shell Size, Connector Layout | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Termination | Connector Style | Number of Rows [custom] | Flange Feature | Contact Type | Contact Finish | Backset Spacing | Backset Spacing | Mounting Type | Features | Material Flammability Rating | Contact Finish Thickness | Flange Feature | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 40 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 30 Áin | 0.76 Ám | Solder | Combo D-Sub | 2 | Housing/Shell (Unthreaded) | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Grounding Indents Shielded | UL94 V-0 | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 40 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Solder | Combo D-Sub | 2 | 4-40 | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Board Lock Grounding Indents | UL94 V-0 | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 30 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | Solder | Combo D-Sub | 2 | Housing/Shell | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | UL94 V-0 | Flash | 4-40 | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 20 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | Solder | Combo D-Sub | 2 | Housing/Shell (M3) | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 40 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 30 Áin | 0.76 Ám | Solder | Combo D-Sub | 2 | Housing/Shell (M3) | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | 30 Áin | 0.76 Ám | Solder | Combo D-Sub | Housing/Shell (M3) | Coax | Gold | 0.37 in | 9.4 mm | Right Angle Through Hole | Grounding Indents Mounting Brackets | UL94 V-0 | 1 | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 20 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Solder | Combo D-Sub | 2 | Housing/Shell (M3) | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Grounding Indents Mounting Brackets | UL94 V-0 | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Nickel Plated Steel | 30 Áin | 0.76 Ám | Solder | Combo D-Sub | Board Side (M3) | Coax | Gold | 0.37 in | 9.4 mm | Right Angle Through Hole | Grounding Indents | UL94 V-0 | 1 | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Solder | Combo D-Sub | Housing/Shell | Coax | Gold | 0.37 in | 9.4 mm | Right Angle Through Hole | UL94 V-0 | Flash | 4-40 | 1 | ||||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Polyester Thermoplastic | Black | 125 VDC | 30 A | Plug Female Sockets and Male Pins | 2 | 1 (DE E) 2V2 2W2 2W2C 2WK2 | Solder | Combo D-Sub | 2 | M3 | Power | Gold | 0.52 " | 13.2 mm | Right Angle Through Hole | Board Lock Grounding Indents Mounting Brackets | UL94 V-0 | Flash |
