NL Series

Catalog

NL-3.5-2*6P GREEN WITHOUT FLANGE

Part	Type	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Pitch [x]	Pitch [x]	Color	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Number of Levels	Material Flammability Rating	Housing Material	Number of Positions	Termination Style	Mounting Type	Contact Material	Positions Per Level

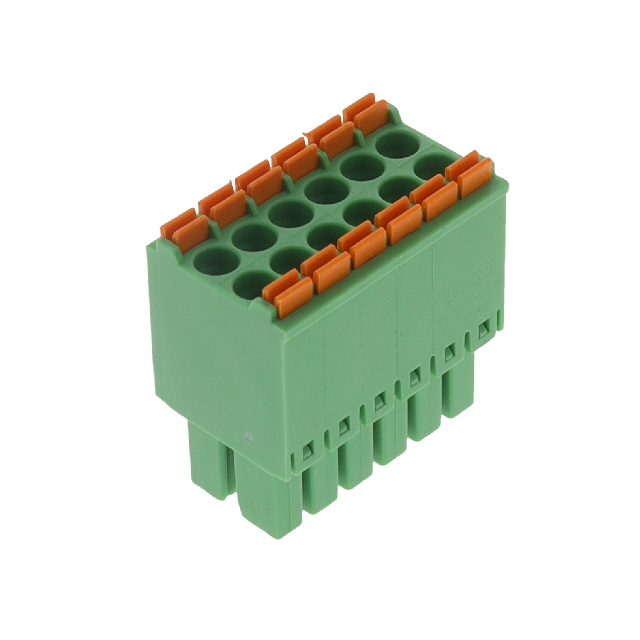

Amphenol Anytek NL12105200G0G	Plug Female Sockets	9 mm	10 mm	24 AWG	16 AWG	5.5 A	3.5 mm	0.138 in	Green	300 V	-40 °C	115 °C	Tin	2	UL94 V-0	Thermoplastic	12	Push-In Spring Screwless - Leg Spring	Free Hanging (In-Line)	Phosphor Bronze	6

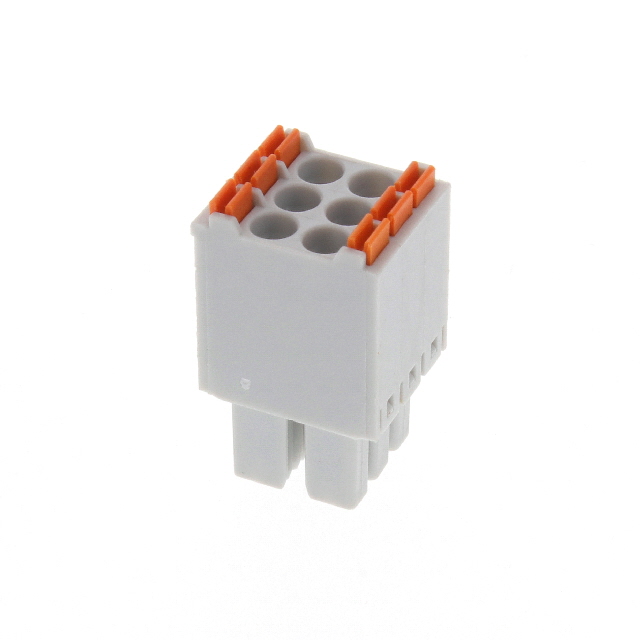

Amphenol Anytek NL06108200G0G	Plug Female Sockets	9 mm	10 mm	24 AWG	16 AWG	5.5 A	3.5 mm	0.138 in	Gray	300 V	-40 °C	115 °C	Tin	2	UL94 V-0	Thermoplastic	6	Push-In Spring Screwless - Leg Spring	Free Hanging (In-Line)	Phosphor Bronze	3
