717-010 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 10POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row | Mounting Type | Termination | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Gender | Color | Contact Type | Contact Material | Contact Finish | Read Out | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

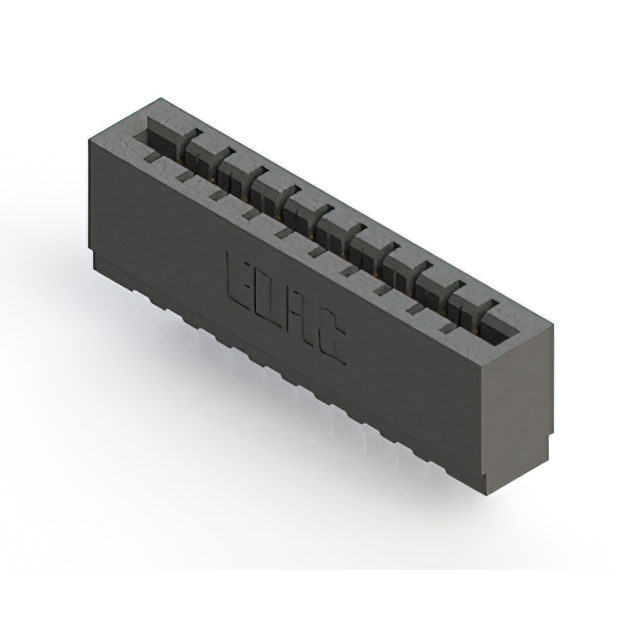

 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | Through Hole | Press-Fit Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 10 | 30 Áin | 0.76 Ám | Female | Black | Cantilever | Copper Alloy | Gold | Single | 1 | -40 C | 105 ░C | Non Specified - Single Edge |

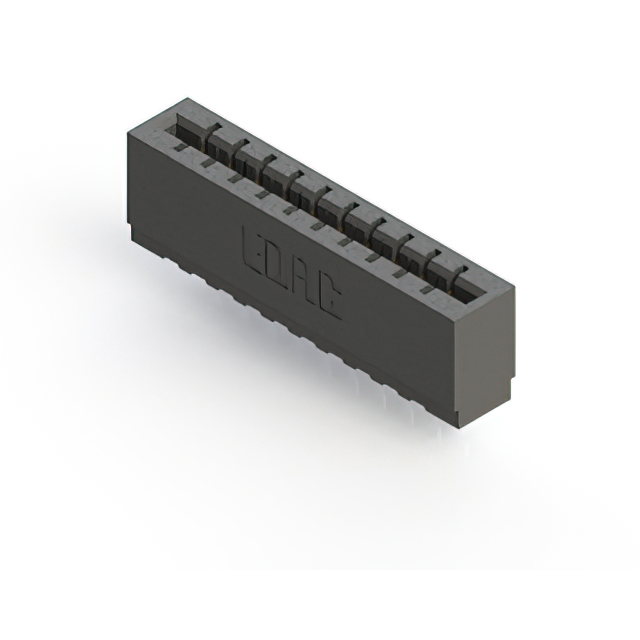

 EDAC Inc. | Polyester Thermoplastic | 1 | 10 | Through Hole | Press-Fit | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | 10 | 30 Áin | 0.76 Ám | Female | Black | Cantilever | Copper Alloy | Gold | Single | 1 | -40 C | 105 ░C | Non Specified - Single Edge |
