102394 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

06 AMP MODU MT HSG DR .100CL ROHS COMPLIANT: YES

Part	Note	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Pitch	Color	Number of Positions	Contact Type	Connector Type	Mounting Type	Contact Termination	Insulation Material	Row Spacing

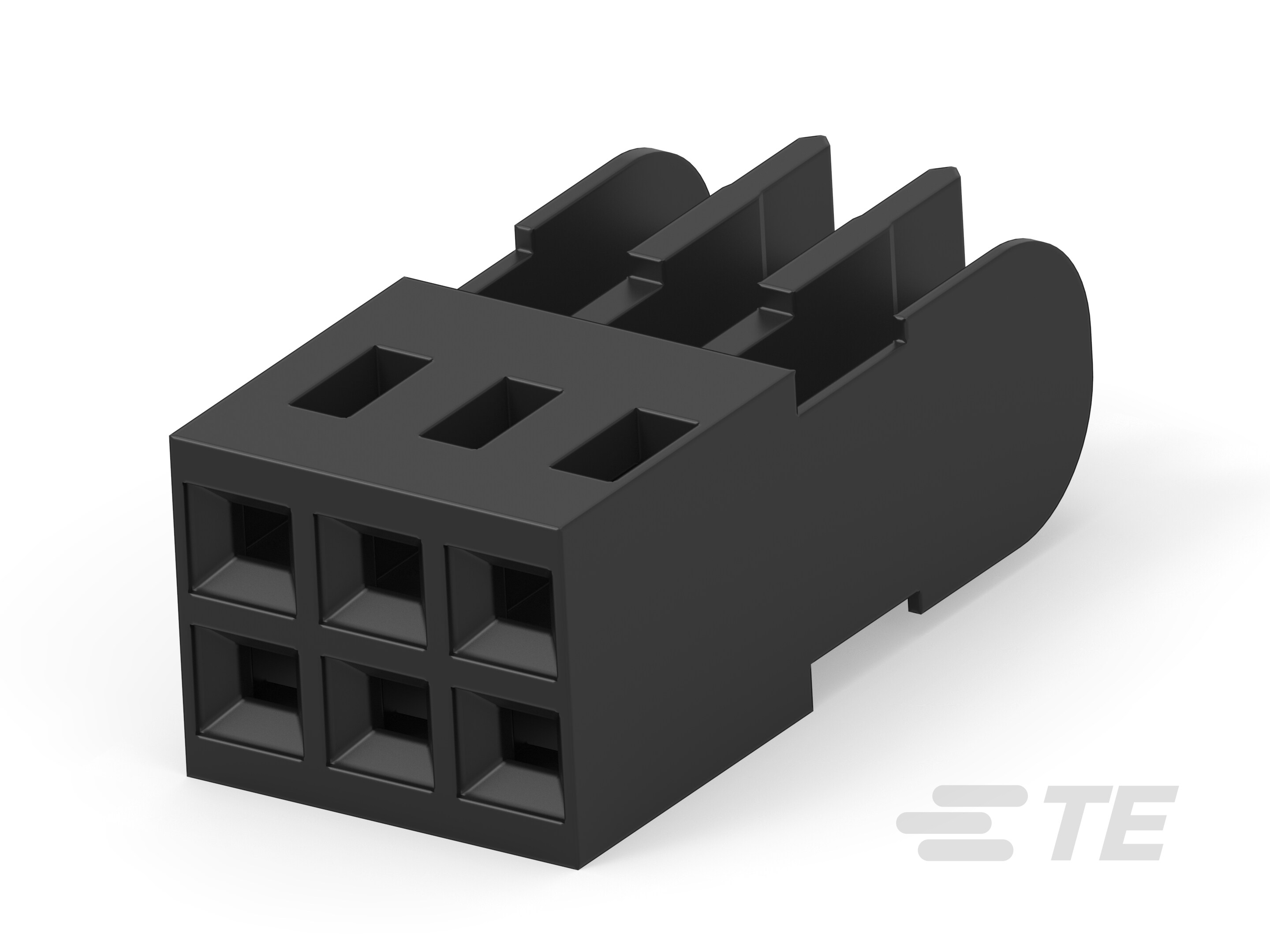

TE Connectivity AMP Connectors 102394-1	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	6	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in

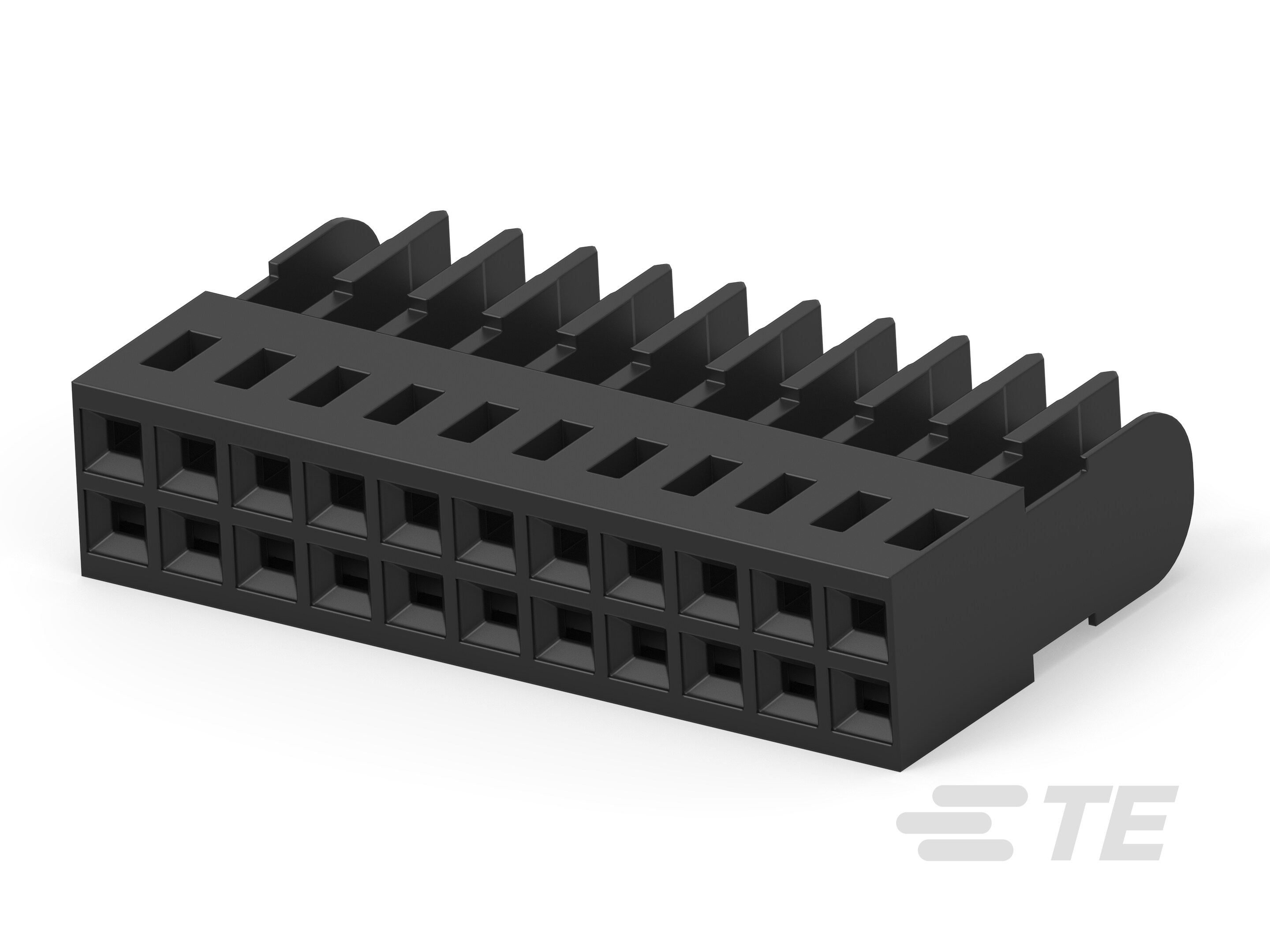

TE Connectivity AMP Connectors 102394-9	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	22	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in

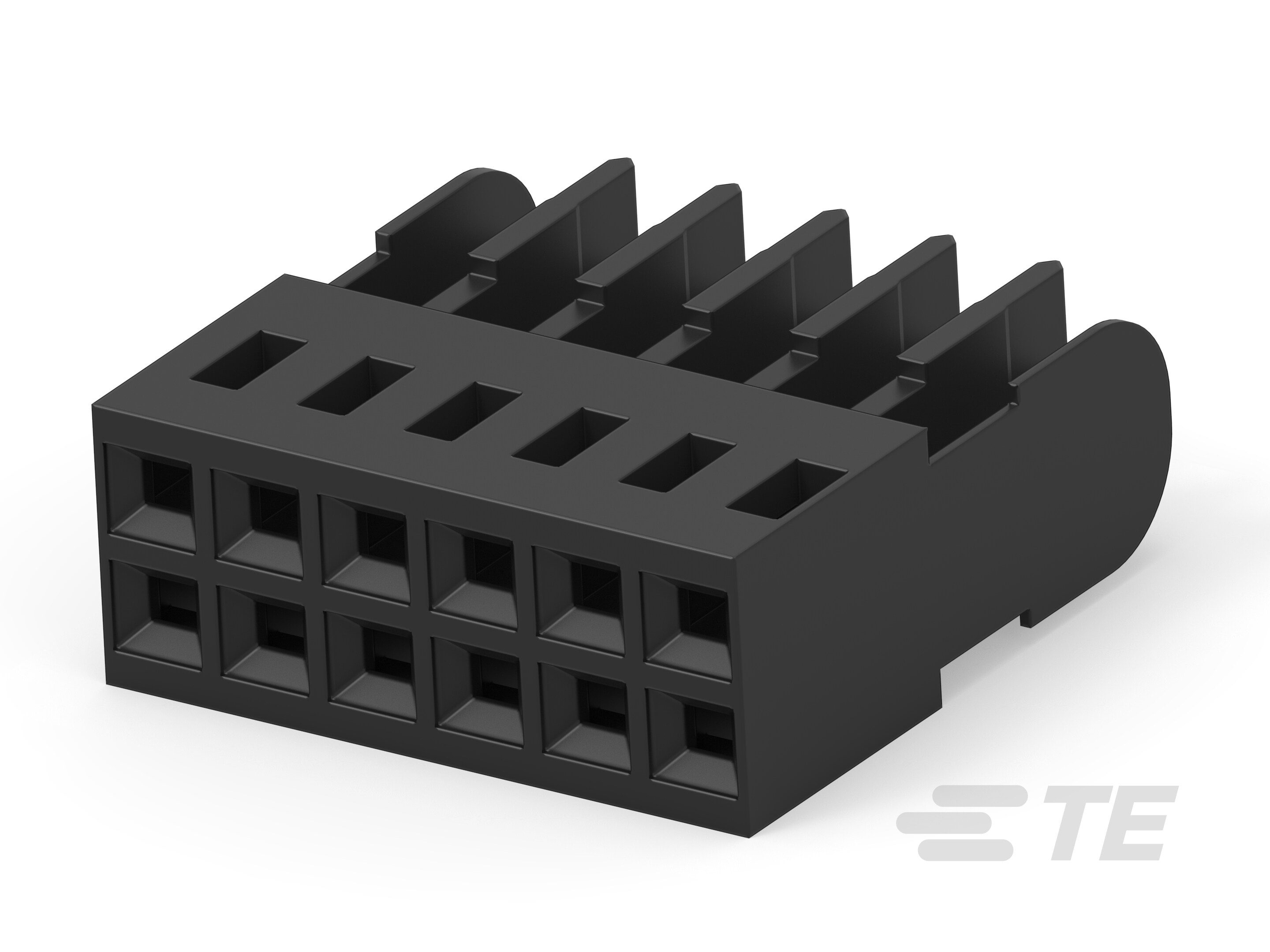

TE Connectivity AMP Connectors 102394-4	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	12	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in

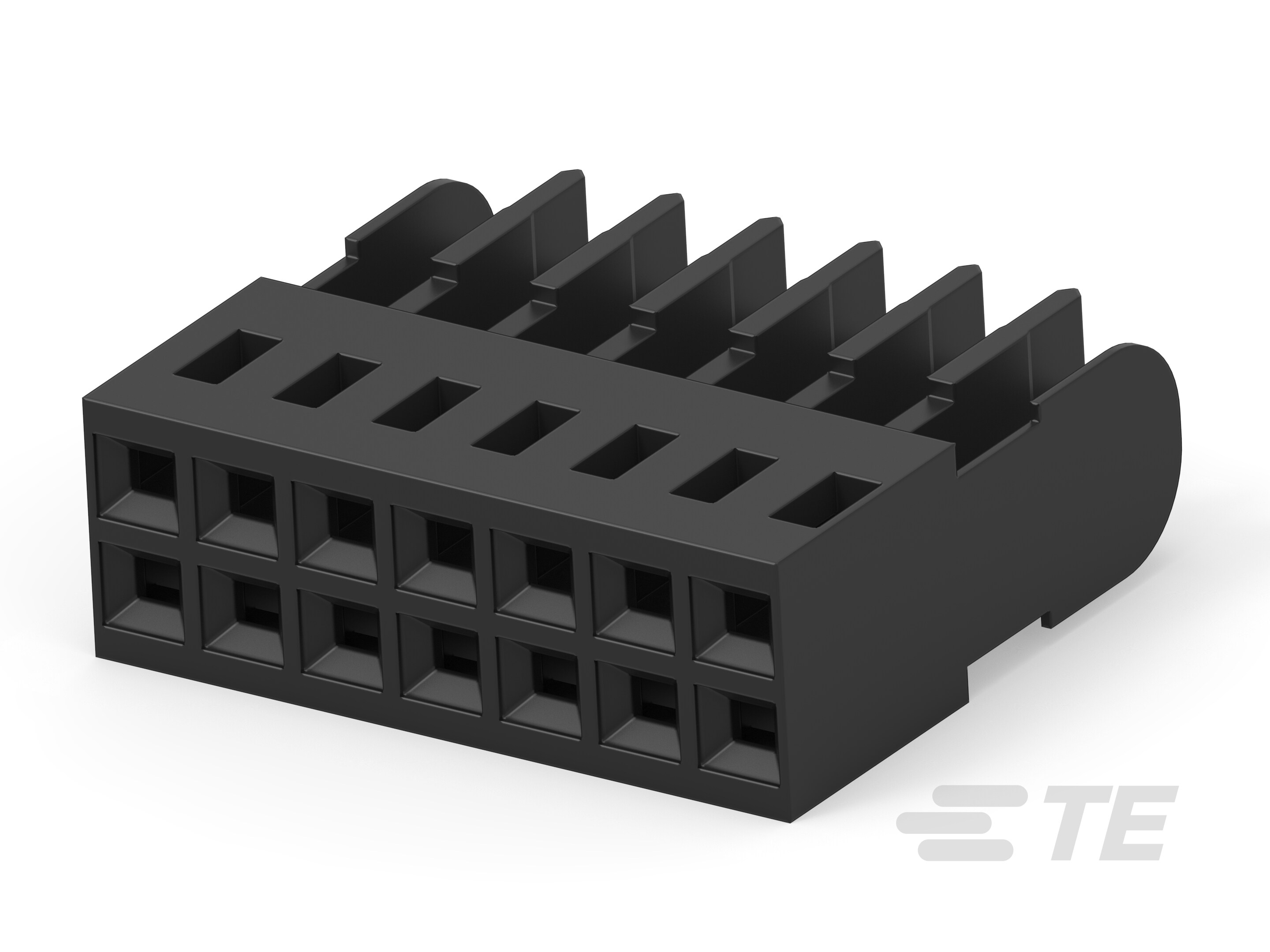

TE Connectivity AMP Connectors 102394-5	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	14	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in
TE Connectivity AMP Connectors 1-102394-2	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	28	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in

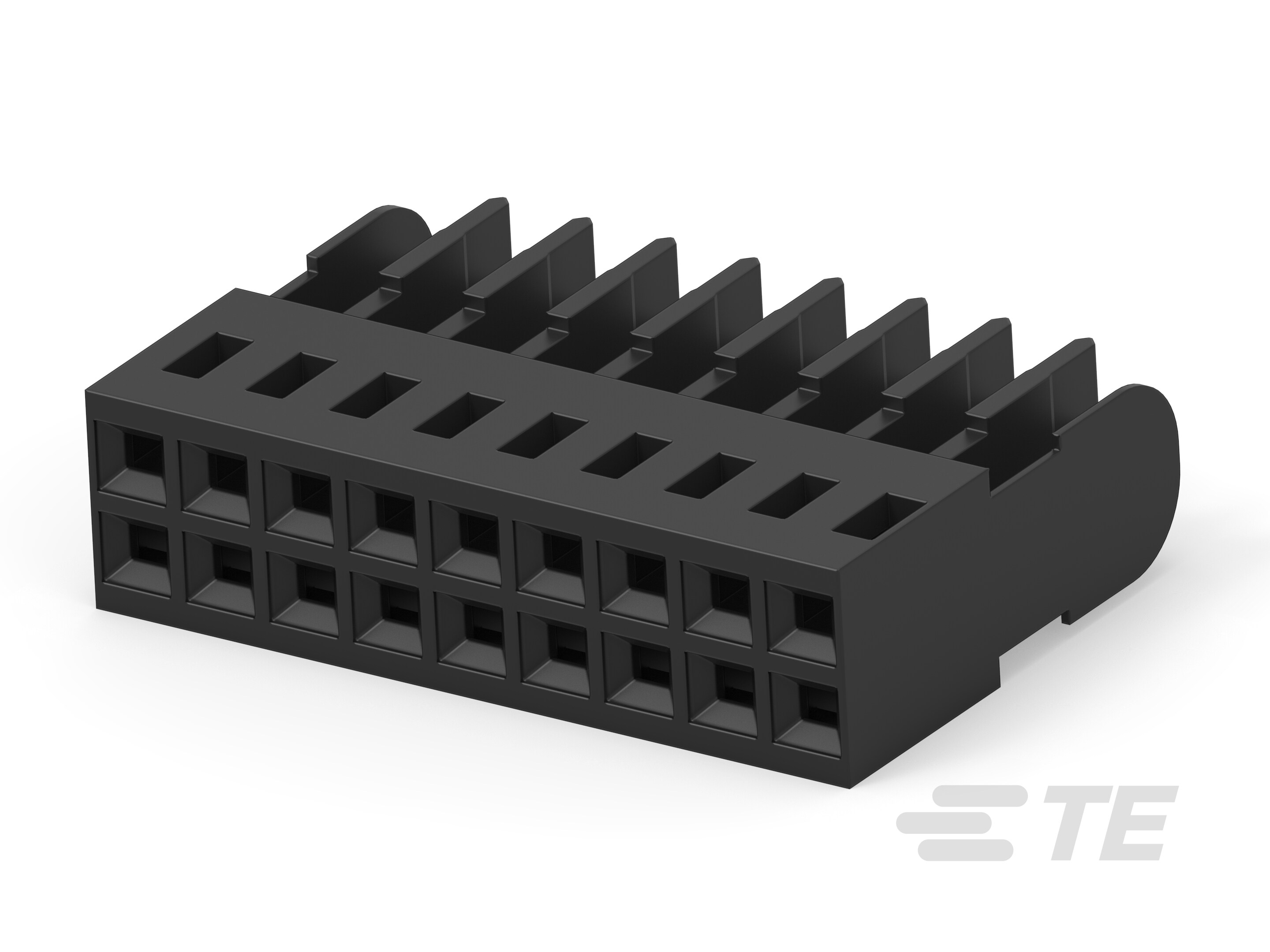

TE Connectivity AMP Connectors 102394-7	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	18	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in
TE Connectivity AMP Connectors 3-102394-0	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	64	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Thermoplastic	0.1 in

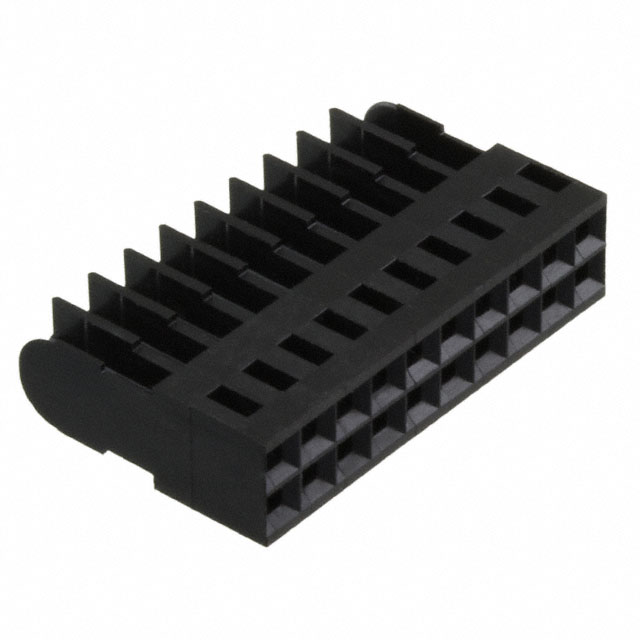

TE Connectivity AMP Connectors 102394-8	Contacts Not Included	2	105 °C	-65 °C	0.1 in	Black	20	Female Socket	Receptacle	Free Hanging (In-Line)	IDC	Glass Filled Thermoplastic	0.1 in
