ITNA Series

Catalog

ITNA PULSE TRANSFORMER THT 0.1A

Part	Weight [diameter]	Weight [diameter]	Inductance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Turns Ratio - Primary:Secondary	Operating Temperature [Max]	Operating Temperature [Min]	Transformer Type	ET (Volt-Time)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Weight	Weight
SCHURTER Inc. ITNA-0249-D104	0.32 oz	9.12 g	3.5 mH	0.512 "	13 mm	Through Hole	1:1	100 °C	-25 °C	SCR and Triac Trigger (Encapsulated)	300 VµS	18.2 mm	0.717 in	17.8 mm	0.701 in

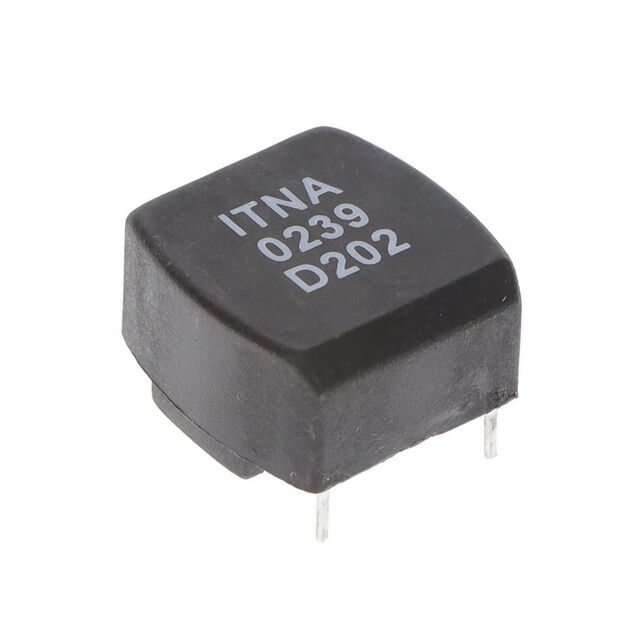

SCHURTER Inc. ITNA-0239-D202			2.2 mH			Through Hole	1:1	100 °C	-25 °C	SCR and Triac Trigger (Encapsulated)	400 VµS	22.7 mm	0.894 in	22.3 mm	0.878 "	10.89 g	0.384 oz
