E3FS Series

Circuit Breakers EA2B02245012ADC

Manufacturer: Switchcraft Inc.

Catalog

Circuit Breakers EA2B02245012ADC

Catalog

Circuit Breakers EA2B02245012ADC

Part	Applications	Connector Type	Contact Material	Termination	Primary Material	Shielding	Features	Current Rating (Amps)	Contact Finish - Mating	Insert Material	Color	Shell Material	Fastening Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shell Finish	Orientation	Mounting Type
Switchcraft Inc. E3FSW	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Screw	Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed
Switchcraft Inc. E3FSTAU	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Solder	Metal	Shielded	Ground	15 A	Gold	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed	Panel Mount Through Hole
Switchcraft Inc. E3FST	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Solder	Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed	Panel Mount Through Hole

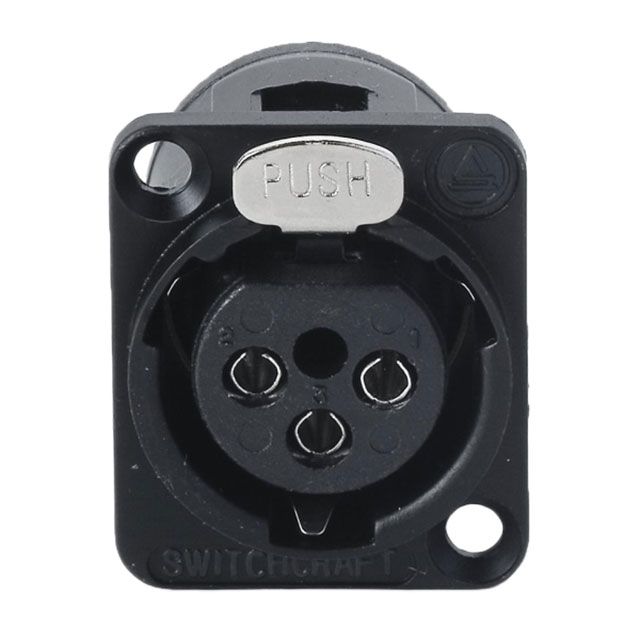

Switchcraft Inc. E3FSCB	Audio Instrumentation	Female Sockets Plug	Copper Alloy		Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Black	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Chrome	Keyed
Switchcraft Inc. E3FSC	Audio Instrumentation	Female Sockets Plug	Copper Alloy		Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed
Switchcraft Inc. E3FSTAUQG	Audio Instrumentation	Female Sockets Insert	Copper Alloy	Solder			Insert Only Requires Shell	15 A	Gold	Thermoplastic					85 °C	-55 °C	XLR		Keyed	Through Hole

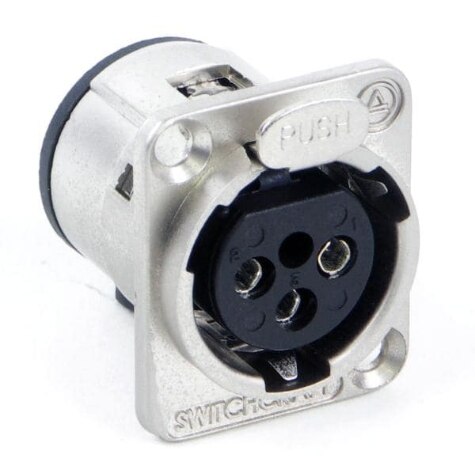

Switchcraft Inc. E3FSCQG	Audio Instrumentation	Female Sockets Insert	Copper Alloy				Insert Only Requires Shell	15 A	Silver	Thermoplastic					85 °C	-55 °C	XLR		Keyed
