K202XHT Series
Manufacturer: Kycon, Inc.
Beta
⌘K

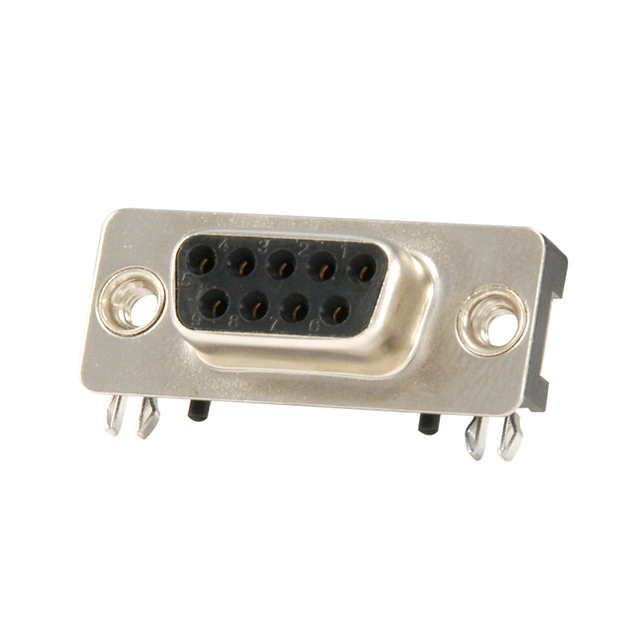

CONN D-SUB RCPT 9P SMD R/A SLDR
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Connector Style | Contact Finish | Mounting Type | Number of Rows [custom] | Connector Type | Termination | Features | Material Flammability Rating | Flange Feature | Flange Feature | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Phosphor Bronze | Black | Thermoplastic | -55 C | 105 ░C | 30 VDC | D-Sub | Gold | Right Angle Surface Mount | 2 | Receptacle Female Sockets | Solder | Board Lock | UL94 V-0 | Housing/Shell | 4-40 | Signal | 30 Áin | 0.76 Ám | Nickel Plated Steel | 9 | 1 | DE E | 2 A |
