EDZ1700 Series

Catalog

TERM BLOCK PLUG 18POS 3.81MM

Part	Wire Strip Length	Housing Material	Contact Material	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm²	Pitch	Pitch	Mounting Type	Type	Positions Per Level	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage - UL	Color	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm˛
On Shore Technology Inc. EDZ1700/18	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	18	1	-30 ░C	105 ░C	18	300 V	Green	Screw	28 AWG	16 AWG

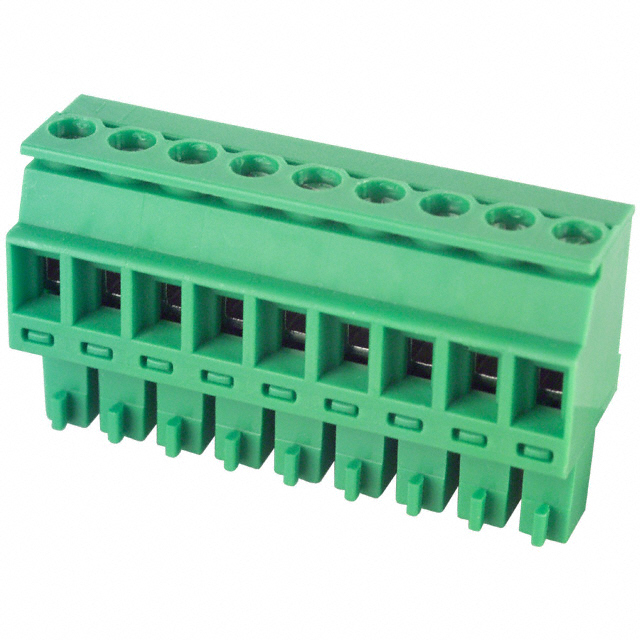

On Shore Technology Inc. EDZ1700/9	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	9	1	-30 ░C	105 ░C	9	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

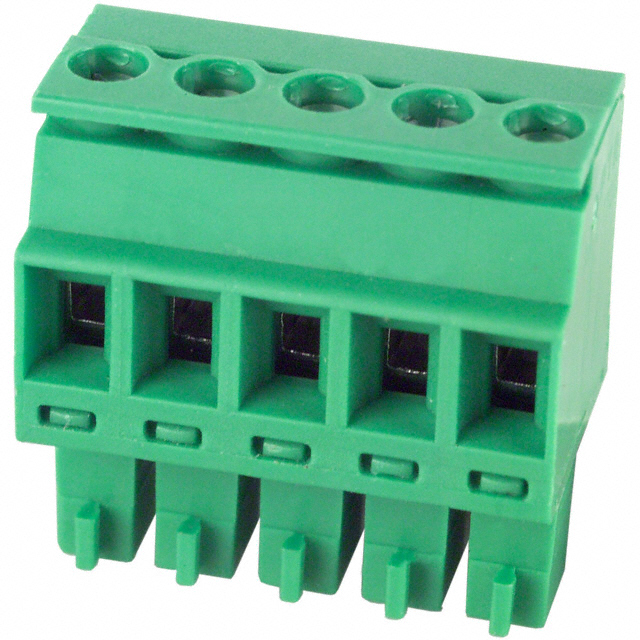

On Shore Technology Inc. EDZ1700/5	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	5	1	-30 ░C	105 ░C	5	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

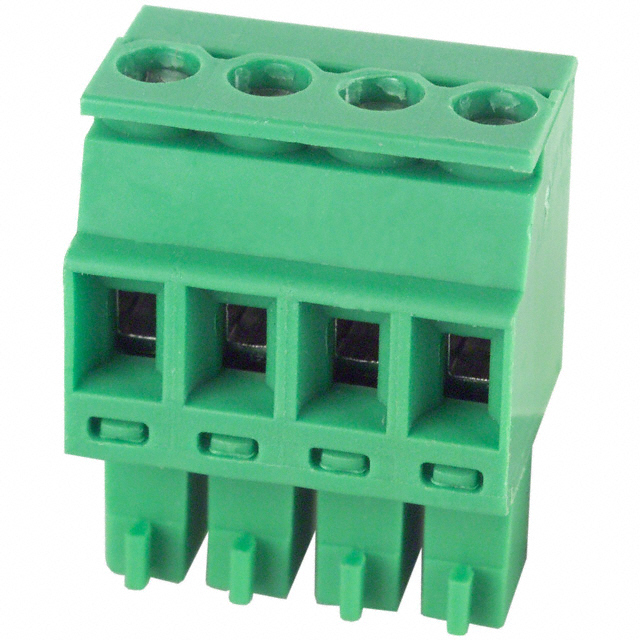

On Shore Technology Inc. EDZ1700/4	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	4	1	-30 ░C	105 ░C	4	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛
On Shore Technology Inc. EDZ1700/16	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	16	1	-30 ░C	105 ░C	16	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

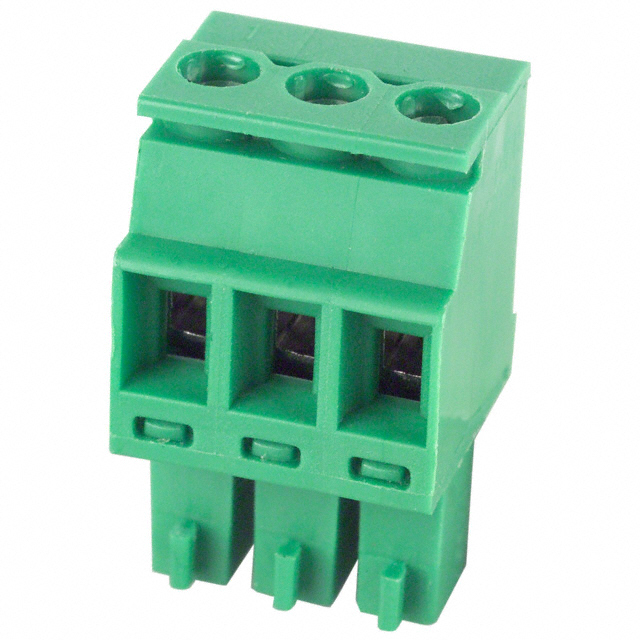

On Shore Technology Inc. EDZ1700/3	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	3	1	-30 ░C	105 ░C		300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

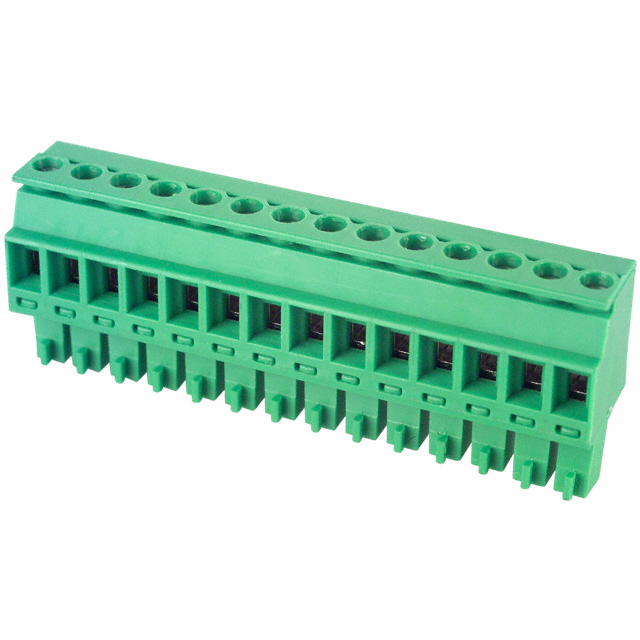

On Shore Technology Inc. EDZ1700/14	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	14	1	-30 ░C	105 ░C	14	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

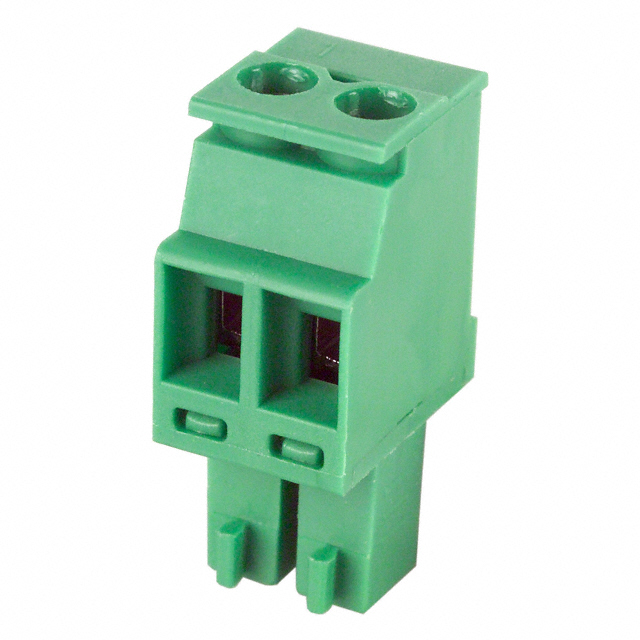

On Shore Technology Inc. EDZ1700/2	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	2	1	-30 ░C	105 ░C	2	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛

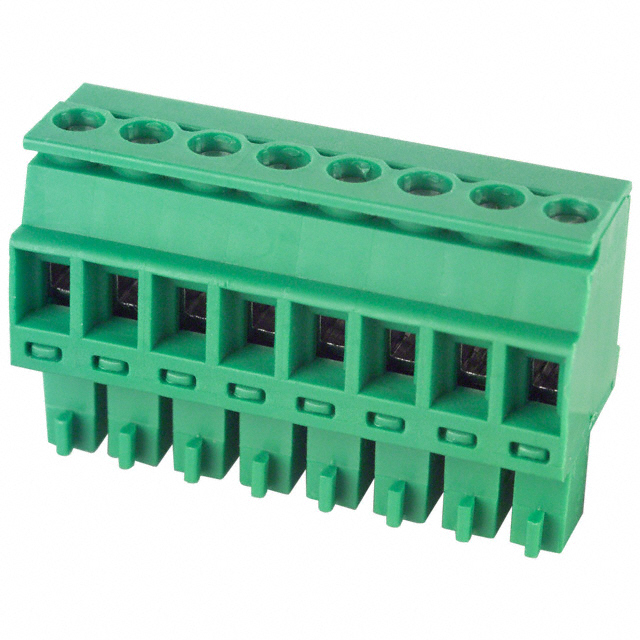

On Shore Technology Inc. EDZ1700/8	7 mm	Polyamide (PA) Nylon	Copper Tin Alloy	3.5 Lb-In	0.4 Nm	1.5 mm²	3.81 mm	0.15 in	Free Hanging (In-Line)	Plug Female Sockets	8	1	-30 ░C	105 ░C	8	300 V	Green	Screw	28 AWG	16 AWG	1.5 mm˛
