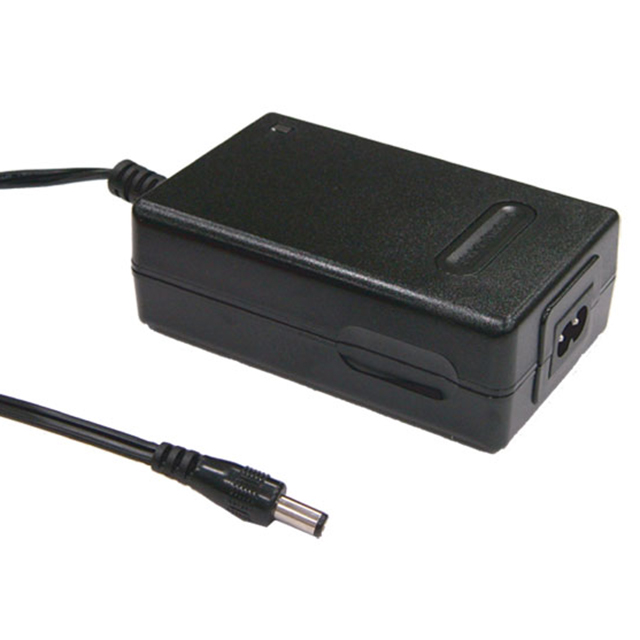

GC30B Series

Catalog

BATT CHARGER DESKTOP 14.3V 2.09A

Part	Operating Temperature [Max]	Approval Agency	Weight	Power - Max [Max]	Type	Features	Voltage - Nominal	Termination Style [diameter]	Termination Style	Termination Style [z]	Battery Chemistry [custom]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Cells	Mounting Type	Charge Current - Max [Max]
MEAN WELL USA Inc. GC30B-4P1J	50 °C	CB CE cULus GS	309 g	30 W	Desktop	LED Indicator	14.3 V	2.1 mm 5.5 mm	Female	11 mm	Lead Acid Lithium-Ion	90 VAC	264 VAC	36 mm	2.64 "	67 mm	1.42 "	108 mm	4.25 in	1	Desktop	2.09 A
MEAN WELL USA Inc. GC30B-6P1J	50 °C	CB CE cULus GS	309 g	30 W	Desktop	LED Indicator	28.6 V	2.1 mm 5.5 mm	Female	11 mm	Lead Acid Lithium-Ion	90 VAC	264 VAC	36 mm	2.64 "	67 mm	1.42 "	108 mm	4.25 in	1	Desktop	1.04 A
MEAN WELL USA Inc. GC30B-11P1J	50 °C	CB CE cULus GS	309 g	21.6 W	Desktop	LED Indicator	7.2 V	2.1 mm 5.5 mm	Female	11 mm	Lead Acid Lithium-Ion	90 VAC	264 VAC	36 mm	2.64 "	67 mm	1.42 "	108 mm	4.25 in	1	Desktop	3 A
MEAN WELL USA Inc. GC30B-5P1J	50 °C	CB CE cULus GS	309 g	27 W	Desktop	LED Indicator	16.8 V	2.1 mm 5.5 mm	Female	11 mm	Lead Acid Lithium-Ion	90 VAC	264 VAC	36 mm	2.64 "	67 mm	1.42 "	108 mm	4.25 in	1	Desktop	1.6 A
