RNF-100 Series

Heat Shrink Tubing & Sleeves HS-TBG 3/32" WH PRICE PER FT

Manufacturer: TE Connectivity AMP Connectors

Catalog

Heat Shrink Tubing & Sleeves HS-TBG 3/32" WH PRICE PER FT

Catalog

Heat Shrink Tubing & Sleeves HS-TBG 3/32" WH PRICE PER FT

...

Part	Shelf Life	Features	Operating Temperature [Min]	Operating Temperature [Max]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Shrink Temperature	Length [x]	Length [x]	Inner Diameter - Recovered	Spool Size [x]	Spool Size [x]	Length	Length	Inner Diameter - Supplied [diameter]

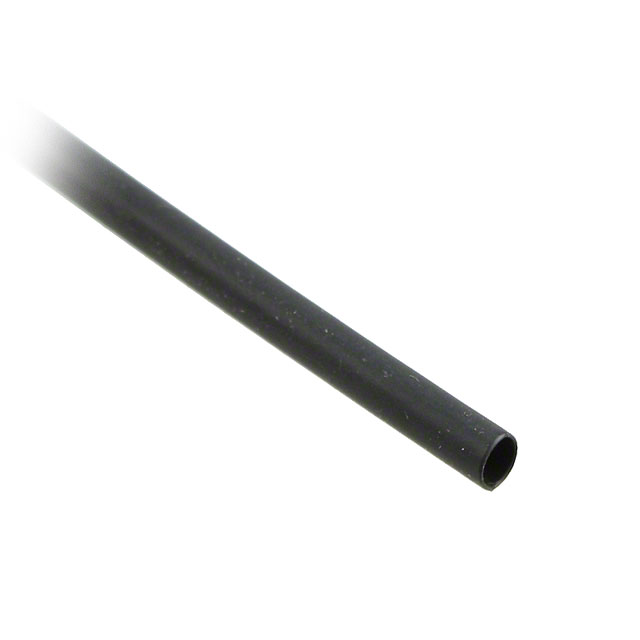

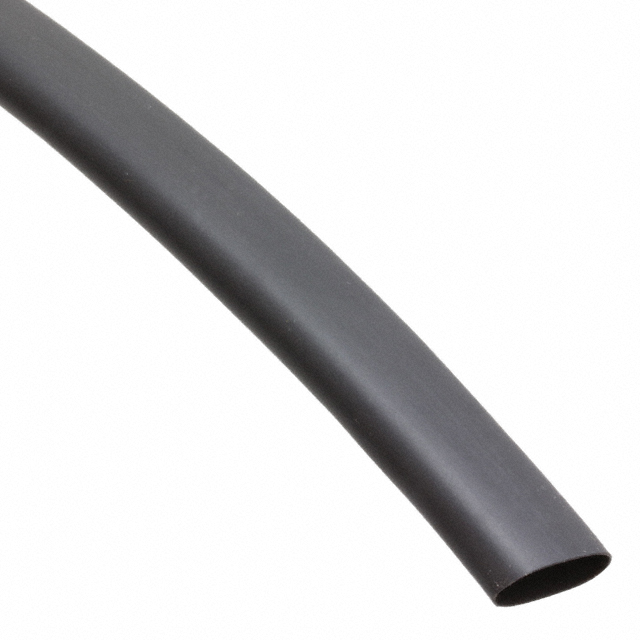

TE Connectivity AMP Connectors RNF-100-3/32-BKSPCS7210	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Black	2.36 mm	0.093 "	Polyolefin (PO) Irradiated	0.047 in	1.19 mm	Tubing Flexible	0.51 mm	0.02 in	1	2	95 °C

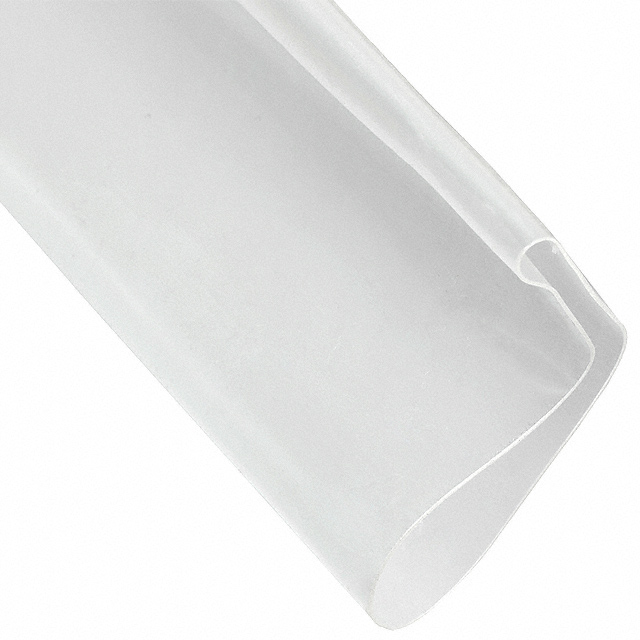

TE Connectivity AMP Connectors RNF-100-2-CL-STK	144 Months	Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Clear	50.8 mm	2 in	Polyolefin (PO) Irradiated	1 in		Tubing Flexible	1.14 mm	0.045 in	1	2	95 °C	4 ft	1.22 m	25.4 mm
TE Connectivity AMP Connectors RNF-100-3/64-WH-SP	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	White	1.17 mm	0.046 "	Polyolefin (PO) Irradiated	0.023 in	0.58 mm	Tubing Flexible	0.41 mm	0.016 in	1	2	95 °C

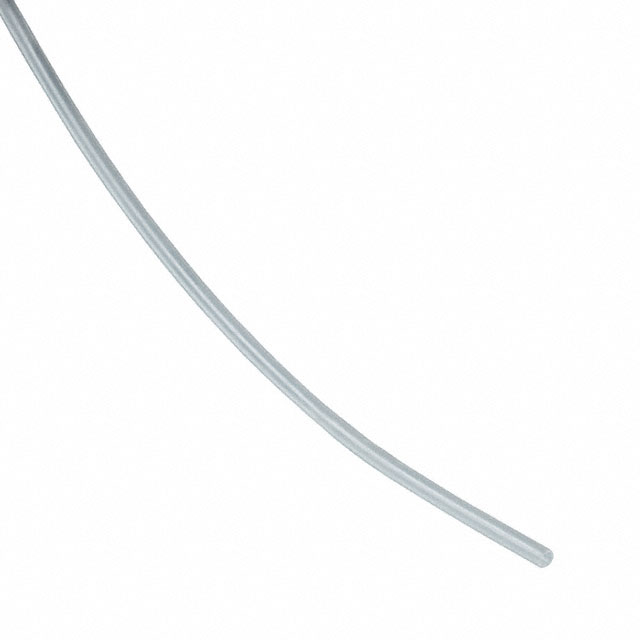

TE Connectivity AMP Connectors RNF-100-3/64-CL-SP	144 Months	Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Clear	1.17 mm	0.046 "	Polyolefin (PO) Irradiated	0.023 in	0.58 mm	Tubing Flexible	0.41 mm	0.016 in	1	2	95 °C	984.3 ft	300 m		305 m	1000.7 ft	1 m 304.8 m	3.28 ft 1000 ft
TE Connectivity AMP Connectors RNF-100-1/8-BK-SP-CS5868	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Black	3.18 mm	0.125 in	Polyolefin (PO) Irradiated	0.062 in	1.57 mm	Tubing Flexible	0.51 mm	0.02 in	1	2	95 °C
TE Connectivity AMP Connectors RNF-100-1/4-BN-STK	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Brown	0.25 "		Polyolefin (PO) Irradiated	0.125 in	3.18 mm	Tubing Flexible	0.64 mm	0.025 in	1	2	95 °C	4 ft	1.22 m						6.35 mm
TE Connectivity AMP Connectors RNF-100-3/8-WH-SP	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	White	9.53 mm	0.375 in	Polyolefin (PO) Irradiated	0.187 in	4.75 mm	Tubing Flexible	0.64 mm	0.025 in	1	2	95 °C
TE Connectivity AMP Connectors RNF-100-1-1/4-YO-SP	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Yellow	31.75 mm	1.25 in	Polyolefin (PO) Irradiated	0.625 in	15.88 mm	Tubing Flexible	1.02 mm	0.04 in	1	2	95 °C
TE Connectivity AMP Connectors RNF-100-1/2-BU-STK	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Blue	12.7 mm	0.5 "	Polyolefin (PO) Irradiated	0.25 in	6.35 mm	Tubing Flexible	0.64 mm	0.025 in	1	2	95 °C	4 ft	1.22 m
TE Connectivity AMP Connectors RNF-100-3/4-BK-SP-SM	144 Months	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	-55 C	135 °C	Black			Polyolefin	0.374 "	9.5 mm	Tubing Flexible	0.76 mm	0.03 in	1	2	95 °C
