892-086 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 86POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Termination	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Color	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Material	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Rows [custom]	Card Type	Mounting Type	Gender	Number of Positions	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-086-520-208	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86
EDAC Inc. 892-086-521-207	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount M3 Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86
EDAC Inc. 892-086-560-212	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount Side Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Board Edge Straddle Mount	Female	86	Card Extender	0.128 "	3.25 mm
EDAC Inc. 892-086-523-212	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount Side Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86		0.128 "	3.25 mm
EDAC Inc. 892-086-523-201	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black		0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86
EDAC Inc. 892-086-540-202	2	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86		0.128 "	3.25 mm

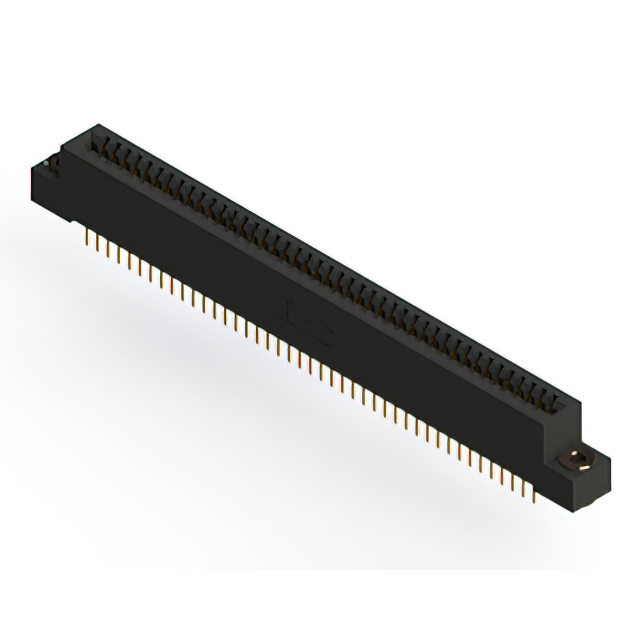

EDAC Inc. 892-086-524-203	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86		0.116 "	2.95 mm
EDAC Inc. 892-086-521-208	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	4-40 Flush Mount Threaded Insert Top Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86
EDAC Inc. 892-086-544-202	2	Polyphenylene Sulfide (PPS)	Cantilever	Wire Wrap	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount Top Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86		0.128 "	3.25 mm
EDAC Inc. 892-086-500-212	2	Polyphenylene Sulfide (PPS)	Cantilever	Solder Eyelet(s)	0.1 "	2.54 mm	0.25 Ám	10 Áin	Black	Flush Mount Side Opening Unthreaded	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Copper Alloy	43	125 °C	-40 C	Dual	2	Non Specified - Dual Edge	Through Hole	Female	86		0.128 "	3.25 mm
