LCD-S601 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
LCD MOD 6 DIG 6 X 1 REFLECTIVE
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Character Format | Number of Characters | Character Size [z] | Character Size [y] | Viewing Area [y] | Viewing Area [x] | Display Type | Operating Temperature [Max] | Operating Temperature [Min] | Outline L x W x H [y] | Outline L x W x H [z] | Outline L x W x H [x] | Display Format [y] | Display Format [x] | Backlight | Background Color | Display Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

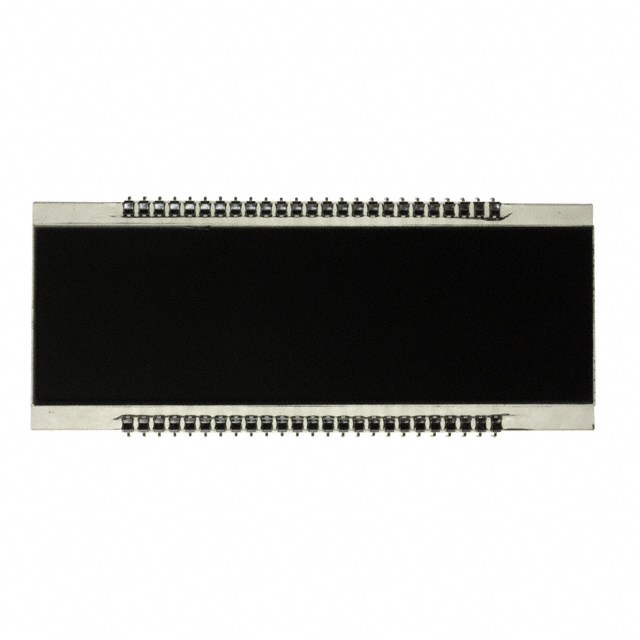

 Lumex Opto/Components Inc. | 3 V | 5 V | 7-Segment | 6 | 17.99 mm | 10.16 mm | 24.13 mm | 86.36 mm | TN - Twisted Nematic | 50 °C | 0 °C | 38.1 mm | 2.8 mm | 93.85 mm | 1 | 6 | Gray | Reflective | |

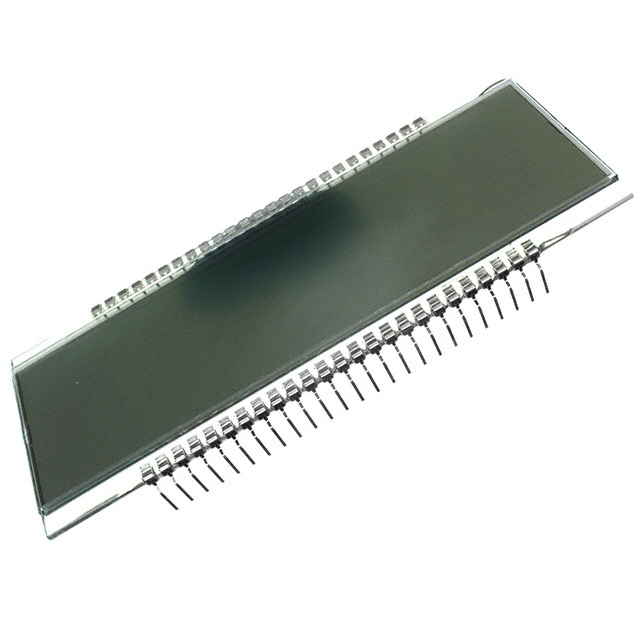

 Lumex Opto/Components Inc. | 3 V | 5 V | 7-Segment | 6 | 17.99 mm | 10.16 mm | 24.13 mm | 86.36 mm | TN - Twisted Nematic | 50 °C | 0 °C | 38.1 mm | 2.8 mm | 93.85 mm | 1 | 6 | Gray | Transflective |
