737-032 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 32POS 0.156

Part	Material - Insulation	Termination Rows	Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Contact Finish	Contact Material	Gender	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Card Type	Termination	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 737-032-540-101	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	32	30 Áin	0.76 Ám	1

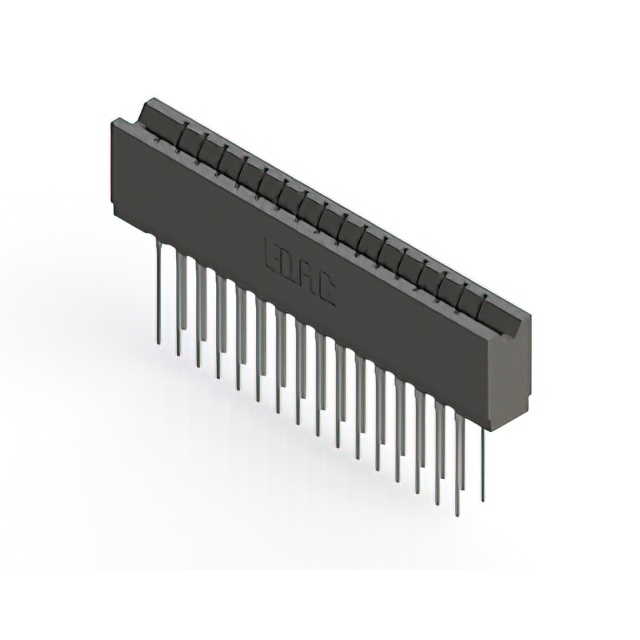

EDAC Inc. 737-032-541-206	Polyester Thermoplastic		Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Press-Fit Wire Wrap	16	30 Áin	0.76 Ám		2	2

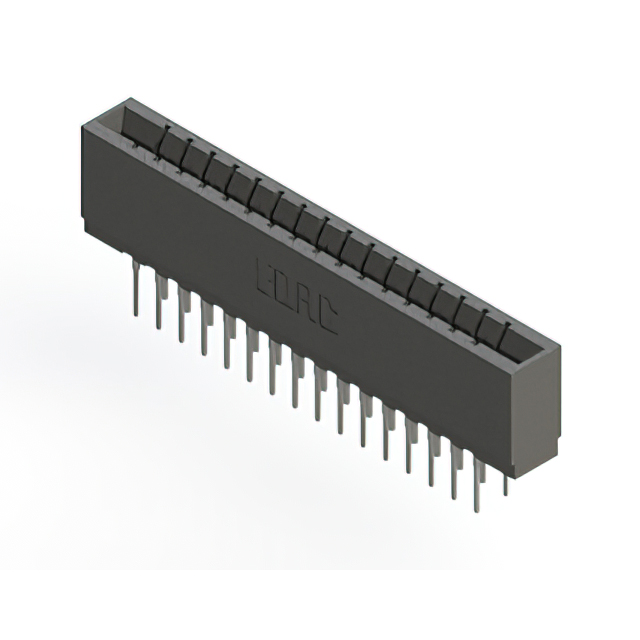

EDAC Inc. 737-032-522-201	Polyester Thermoplastic		Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Press-Fit	16	30 Áin	0.76 Ám		2	2
EDAC Inc. 737-032-525-106	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit	32	30 Áin	0.76 Ám	1
EDAC Inc. 737-032-522-101	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit	32	30 Áin	0.76 Ám	1
EDAC Inc. 737-032-525-201	Polyester Thermoplastic		Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Press-Fit	16	30 Áin	0.76 Ám		2	2
EDAC Inc. 737-032-522-106	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit	32	30 Áin	0.76 Ám	1
EDAC Inc. 737-032-540-106	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	32	30 Áin	0.76 Ám	1
EDAC Inc. 737-032-545-106	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit Wire Wrap	32	30 Áin	0.76 Ám	1
EDAC Inc. 737-032-525-101	Polyester Thermoplastic	1	Black	Cantilever	-40 C	105 ░C	3.96 mm	0.156 in	Gold	Copper Alloy	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Non Specified - Single Edge	Press-Fit	32	30 Áin	0.76 Ám	1
