CM23-1 Series
Manufacturer: Marlow Industries, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

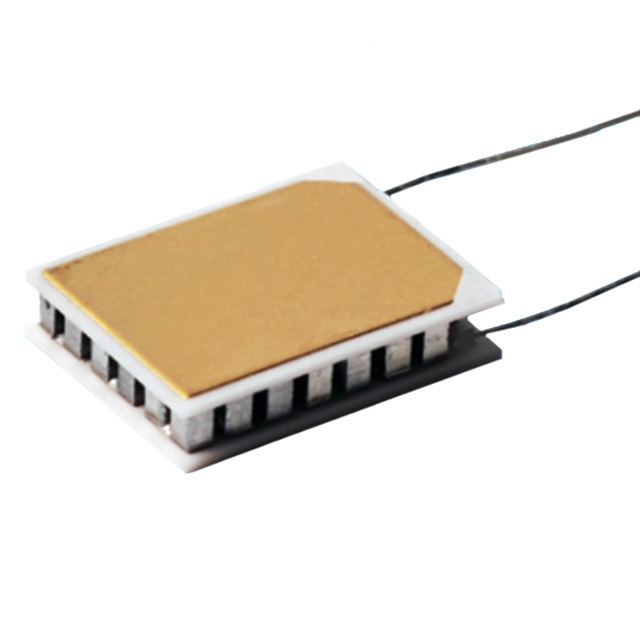

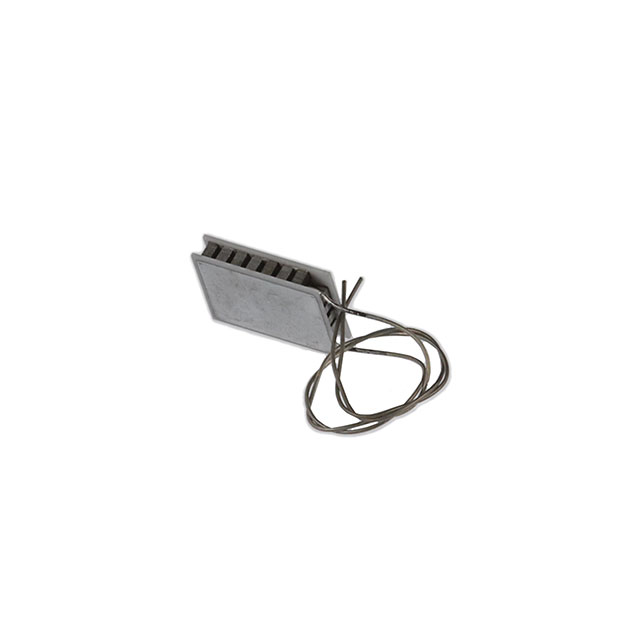

TEM 8.18X6.02X1.65MM
| Part | Size / Dimension Shape | Size / Dimension Length | Size / Dimension Width | Current - Max | Features | Delta Tmax | Height | Voltage - Max | Type | Resistance | Number of Stages | Maximum Power Dissipation (Qmax) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Marlow Industries, Inc. | Rectangular | 8.18 mm | 6.02 mm | 1.9 A | Exterior Metallization (Both Sides Pre-Tinned) Lead Wires | 71 °C | 1.65 mm | 2.8 V | TEC (Thermoelectric Cooler) | 1.23 Ohms | 1 | 3.4 W | 85 °C |
 Marlow Industries, Inc. | Rectangular | 8.18 mm | 6.02 mm | 1.9 A | Exterior Metallization (Both Sides) Lead Wires | 71 °C | 1.65 mm | 2.8 V | TEC (Thermoelectric Cooler) | 1.23 Ohms | 1 | 3.4 W | 85 °C |
 Marlow Industries, Inc. | Rectangular | 8.18 mm | 6.02 mm | 1.9 A | Exterior Metallization (Both Sides Pre-Tinned) Lead Wires | 71 °C | 1.65 mm | 2.8 V | TEC (Thermoelectric Cooler) | 1.23 Ohms | 1 | 3.4 W | 85 °C |
 Marlow Industries, Inc. | Rectangular | 8.18 mm | 6.02 mm | 1.9 A | Exterior Metallization (Both Sides Pre-Tinned) Lead Wires | 71 °C | 1.65 mm | 2.8 V | TEC (Thermoelectric Cooler) | 1.23 Ohms | 1 | 3.4 W | 85 °C |
 Marlow Industries, Inc. | Rectangular | 8.18 mm | 6.02 mm | 1.9 A | Exterior Metallization (Both Sides Pre-Tinned) Lead Wires | 71 °C | 1.65 mm | 2.8 V | TEC (Thermoelectric Cooler) | 1.23 Ohms | 1 | 3.4 W | 85 °C |
