5078C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

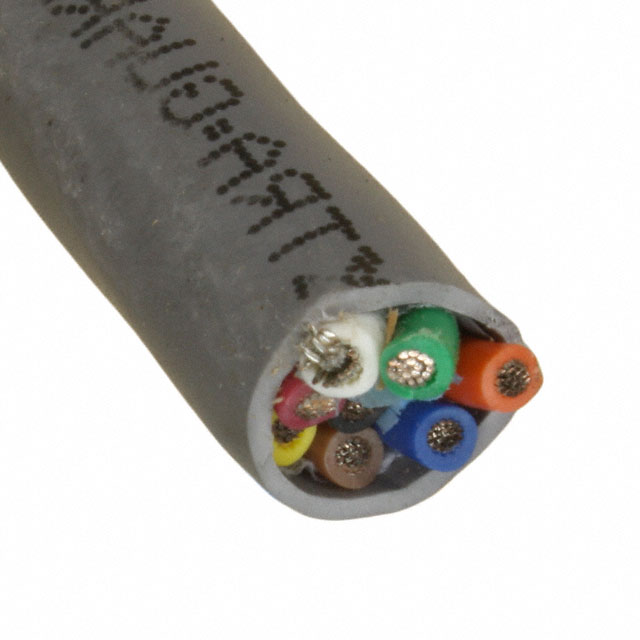

CBL 8COND 16AWG SLATE 1000=1000'
| Part | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [diameter] | Cable Type | Jacket (Insulation) Material | Jacket Color | Ratings | Conductor Insulation | Conductor Material | Wire Gauge | Number of Conductors [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Communication Control | 0.813 mm | 0.032 in | 19 | 0.0117 in | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Slate | ISO 10993 UL Style 2464 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 16 AWG | 8 | 0.372 in | 9.45 mm | -35 °C | 105 ░C | Biological Compatibility Rip Cord | 300 VDC |
