1986712 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
SCREWLESS, SW,14P,5.08 PCB
| Part | Number of Levels | Current | Mating Orientation | Positions Per Level | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Pitch [x] | Pitch [x] | Wire Termination | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Material - Plating | Color | Mounting Type | Features | Clamp Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

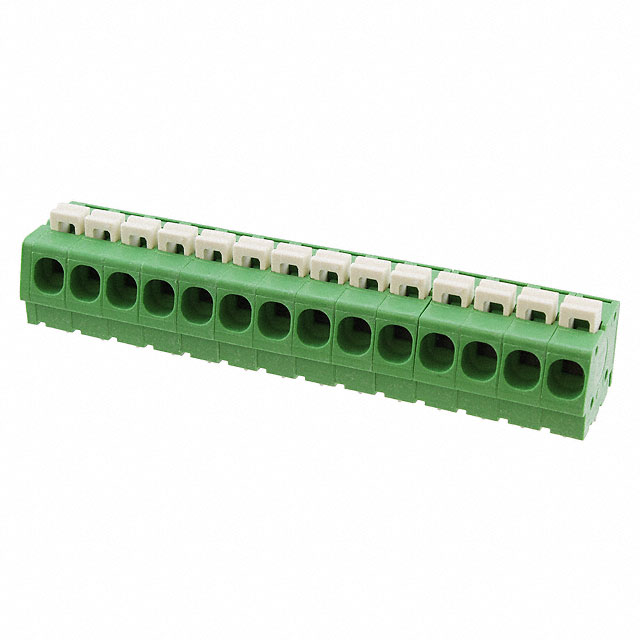

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 14 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

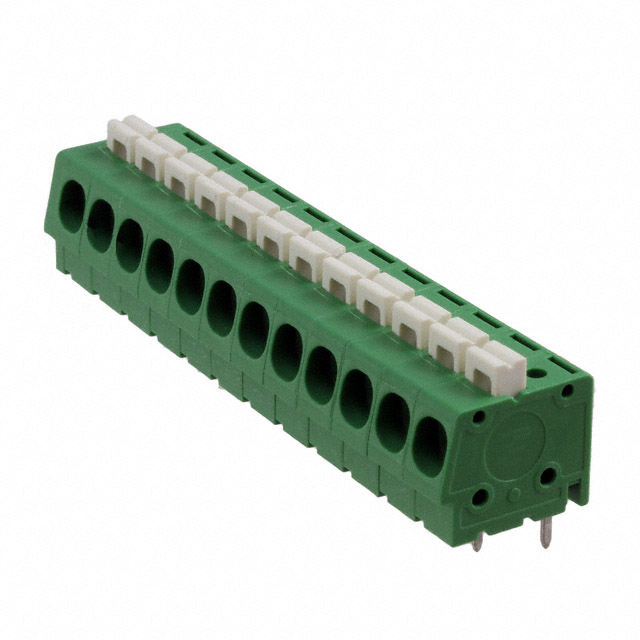

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 12 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

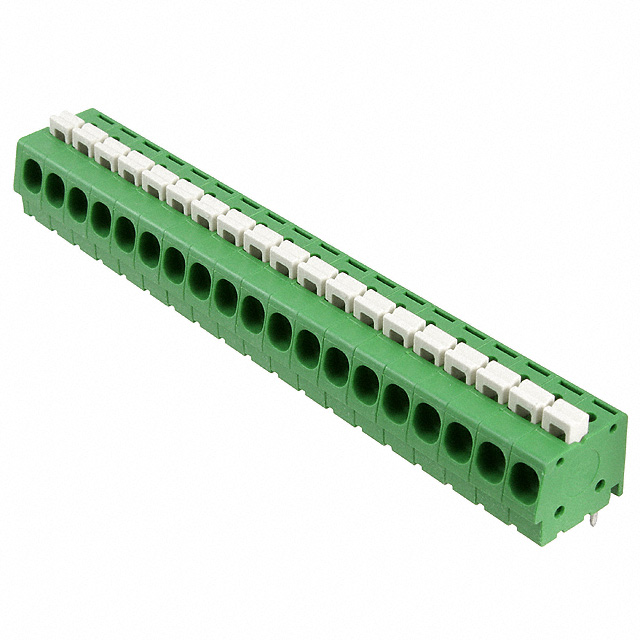

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 19 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |
TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 8 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

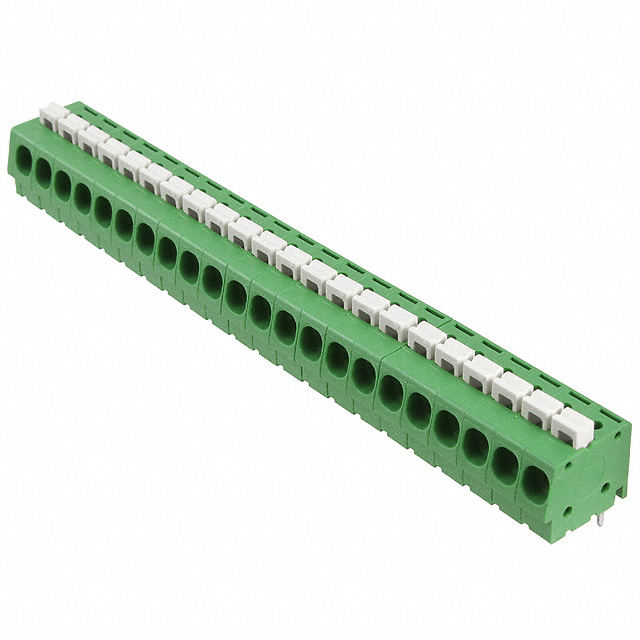

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 22 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

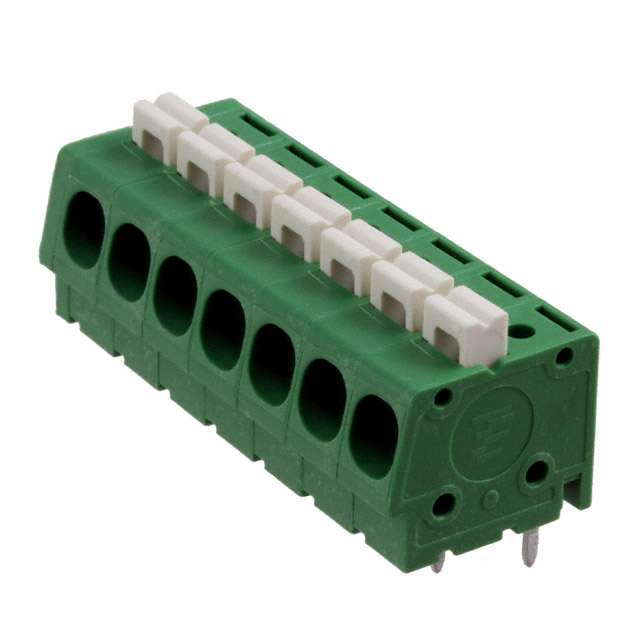

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 7 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

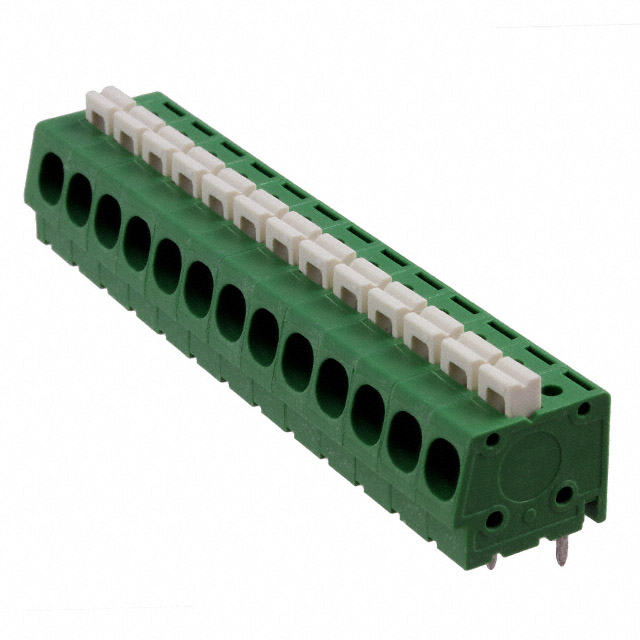

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 13 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

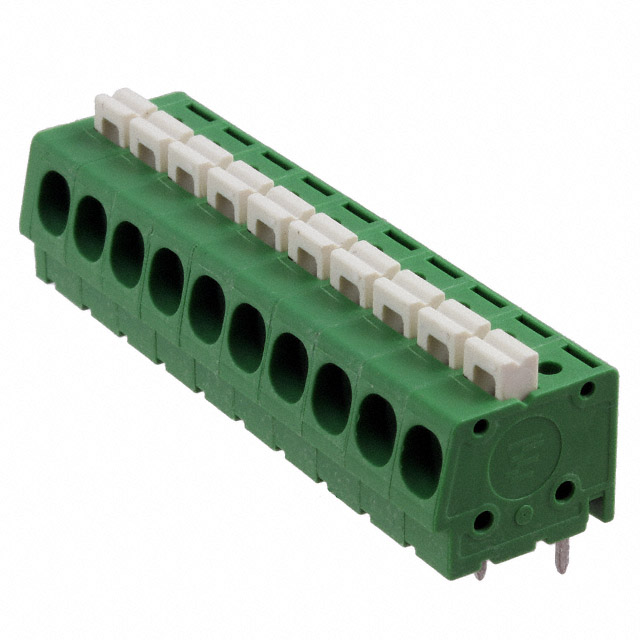

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 10 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |

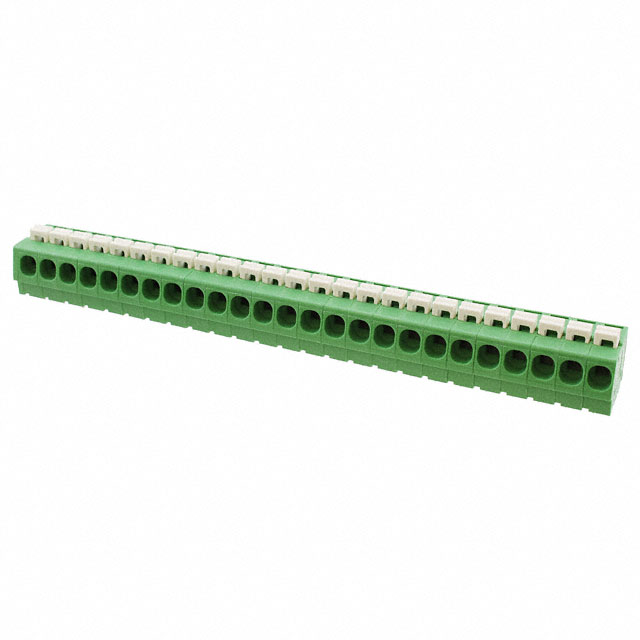

 TE Connectivity Raychem Cable Protection | 1 | 16 A | Horizontal with Board | 25 | 300 V | 30 AWG | 12 AWG | 0.2 in | 5.08 mm | Screwless - Push Button Clamp | -40 °C | 110 °C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Green | Through Hole | Interlocking (Side) | Steel |
