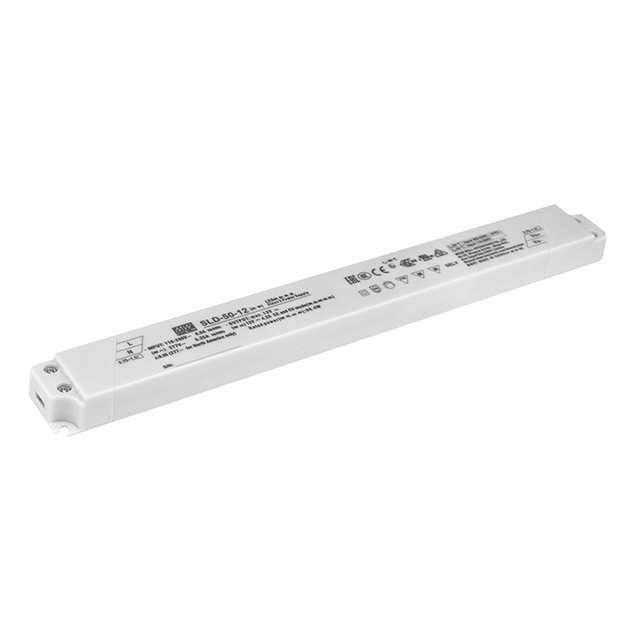

SLD-50 Series

Catalog

50W SLIM AND LINEAR TYPE LED DRI

Part	Mounting Type	Voltage - Output	Voltage - Input (Max) [Max]	Topology	Voltage - Isolation	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Voltage - Input (Min) [Min]	Features	Approval Agency	Termination Style
MEAN WELL USA Inc. SLD-50-24	Chassis Mount	24 V	305 VAC	AC DC Converter	3750 VDC	2.1 A	50 W	1	90 %	-20 ░C	90 °C	30 mm	16.8 mm	0.66 in	280 mm	11.02 in	1.18 "	Constant Current Voltage	110 VAC	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	Terminal Block
MEAN WELL USA Inc. SLD-50-56	Chassis Mount	56 V	305 VAC	AC DC Converter	3750 VDC	1.05 A	50 W	1	90 %	-20 ░C	90 °C	30 mm	16.8 mm	0.66 in	280 mm	11.02 in	1.18 "	Constant Current Voltage	110 VAC	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	Terminal Block
MEAN WELL USA Inc. SLD-50-12	Chassis Mount	12 V	305 VAC	AC DC Converter	3750 VDC	4.2 A	50 W	1	88 %	-20 ░C	90 °C	30 mm	16.8 mm	0.66 in	280 mm	11.02 in	1.18 "	Constant Current Voltage	110 VAC	OCP OTP OVP SCP	CB CCC CE cURus EAC ENEC RCM	Terminal Block
