HLMP-CM Series

Catalog

LED GREEN CLEAR T-1 3/4 T/H

Part	Height (Max) [z]	Lens Size	Lens Size	Lens Transparency	Lens Style	Package / Case	Wavelength - Dominant	Lens Color	Millicandela Rating	Wavelength - Peak	Configuration	Mounting Type	Current - Test	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height (Max) [Max] [z]

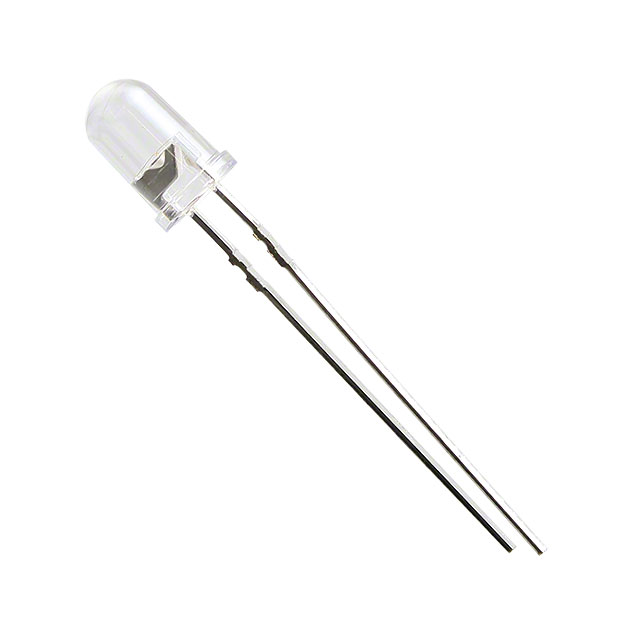

Broadcom Limited HLMP-CM34-X1000	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	525 nm	Colorless	14100 mcd	516 nm	Standard	Through Hole	20 mA	Green	30 °	3.2 V	T-1 3/4
Broadcom Limited HLMP-CM11-Y2000		5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	525 nm	Colorless	18150 mcd	516 nm	Standard	Through Hole	20 mA	Green	15 °	3.3 V	T-1 3/4	8.81 mm
Broadcom Limited HLMP-CM30-TW000	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	4850 mcd	524 nm	Standard	Through Hole	20 mA	Green	30 °	3.2 V	T-1 3/4
Broadcom Limited HLMP-CM31-M0000		5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	520 mcd	524 nm	Standard	Through Hole	20 mA	Green	30 °	3.2 V	T-1 3/4	12.72 mm
Broadcom Limited HLMP-CM30-RSB00	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	2000 mcd	524 nm	Standard	Through Hole	20 mA	Green	30 °	3.2 V	T-1 3/4
Broadcom Limited HLMP-CM26-YZC00		5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	525 nm	Colorless	12650 mcd	516 nm	Standard	Through Hole	20 mA	Green	23 °	3.3 V	T-1 3/4	8.81 mm
Broadcom Limited HLMP-CM2H-Z20DD		5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	525 nm	Colorless	19500 mcd	517 nm	Standard	Through Hole	20 mA	Green	23 °	3.1 V	T-1 3/4	12.6 mm
Broadcom Limited HLMP-CM15-VY000	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	8100 mcd	524 nm	Standard	Through Hole	20 mA	Green	15 °	3.2 V	T-1 3/4
Broadcom Limited HLMP-CM30-TUB00	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	3350 mcd	524 nm	Standard	Through Hole	20 mA	Green	30 °	3.2 V	T-1 3/4
Broadcom Limited HLMP-CM15-S0000	8.91 mm	5 mm	T-1 3/4	Clear	Round with Domed Top	Radial	526 nm	Colorless	1900 mcd	524 nm	Standard	Through Hole	20 mA	Green	15 °	3.2 V	T-1 3/4
