G-INS-M50 Series

Catalog

CABLE GLAND 30-36MM M50 POLYAMID

Part	Material	Thread Length	Thread Length	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Type	Color	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [diameter]	Outside Cable Diameter (Min) [diameter]

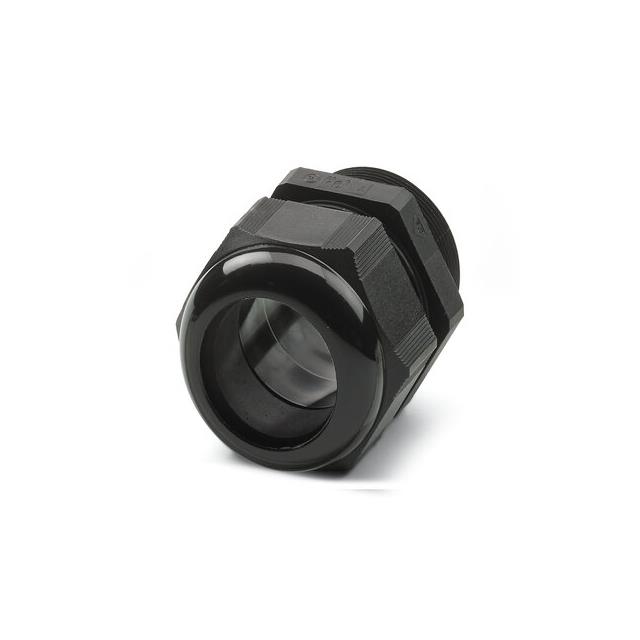

Phoenix Contact 1411138	Polyamide (PA) Nylon	0.709 in	18.01 mm	M50	1.181 in	30 mm	-40 C	100 °C	IP66 IP68	Cable Gland	Black	Seal	1.417 in	36 mm

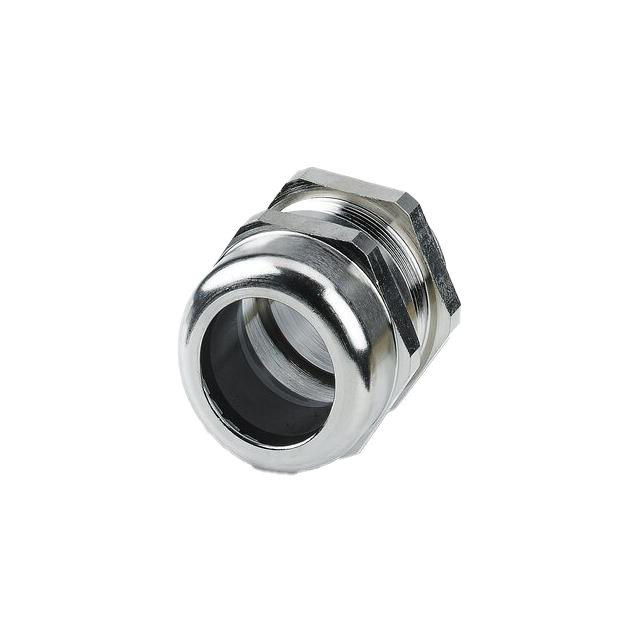

Phoenix Contact 1424530	Brass Nickel Plated	0.354 in	9 mm	M50x1.5			-40 C	100 °C	IP66 IP68 IP69	Cable Gland	Silver	O-Ring Seal	1.26 in		32 mm	0.866 in	22 mm
