SDF-S09 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 9POS PNL MNT
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Shell Material, Finish | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Mounting Type | Contact Finish Thickness | Contact Type | Number of Rows [custom] | Flange Feature | Contact Finish | Connector Type | Current Rating (Amps) | Ingress Protection | Features | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

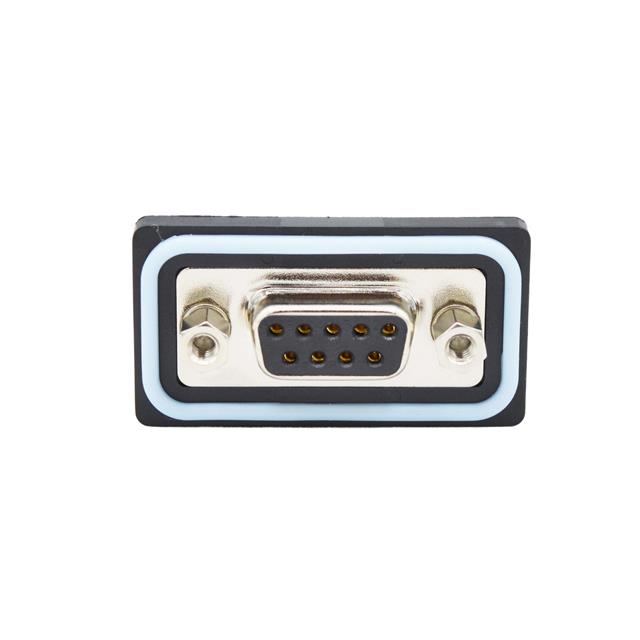

 NorComp Inc. | Brass | Black | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Nickel Plated Steel | D-Sub | 1 | DE E | 9 | Panel Mount | Flash | Signal | 2 | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | 5 A | IP67 - Dust Tight Waterproof | |||

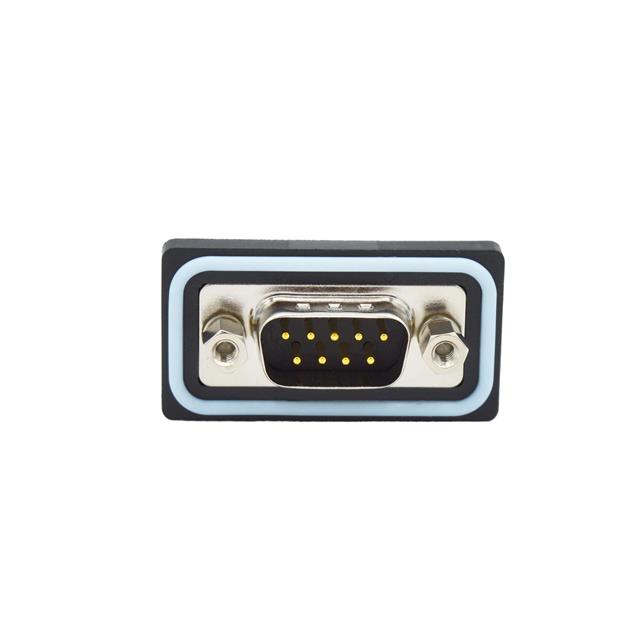

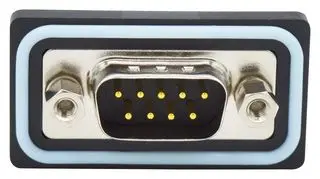

 NorComp Inc. | Brass | Black | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Nickel Plated Steel | D-Sub | 1 | DE E | 9 | Panel Mount | Flash | Signal | 2 | 4-40 Mating Side Female Screwlock | Gold | Plug Male Pins | 5 A | IP67 - Dust Tight Waterproof | Grounding Indents | ||
 NorComp Inc. | Brass | Black | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Nickel Plated Steel | D-Sub | 1 | DE E | 9 | Panel Mount | Signal | 2 | 4-40 Mating Side Female Screwlock | Gold | Plug Male Pins | 5 A | IP67 - Dust Tight Waterproof | Grounding Indents | 30 Áin | 0.76 Ám | |
NorComp Inc. | Brass | Black | Polybutylene Terephthalate (PBT) | 85 °C | -25 °C | UL94 V-0 | Nickel Plated Steel | D-Sub | 1 | DE E | 9 | Panel Mount | Signal | 2 | 4-40 Mating Side Female Screwlock | Gold | Receptacle Female Sockets | 5 A | IP67 - Dust Tight Waterproof | 30 Áin | 0.76 Ám |
