1634624 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

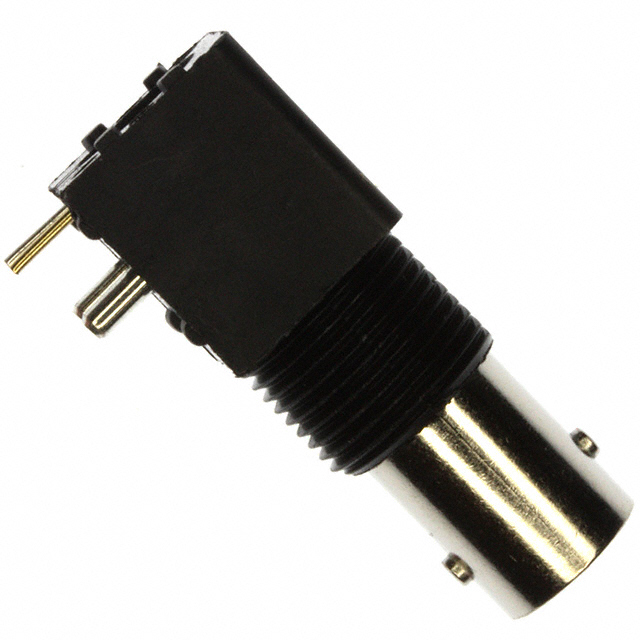

CONN BNC JACK R/A 75 OHM PCB
| Part | Number of Ports | Fastening Type | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mating Cycles | Connector Style | Contact Termination | Mounting Feature | Housing Color | Impedance | Center Contact Plating | Frequency - Max [Max] | Mounting Type | Voltage Rating | Connector Type | Center Contact Material | Features | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Bayonet Lock | Zinc Die Cast | 85 °C | -55 °C | Nickel | 500 | BNC | Solder | Bulkhead - Front Side Nut | Black Silver | 75 Ohms | Gold | 2 GHz | Panel Mount Right Angle Through Hole | 500 V | Female Socket Jack | Brass | Board Guide Isolated | Solder |
