2314918 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P,2MM,B-B,REC,DRHZ,2.1,0.76AU,T

Part	Insulation Height	Insulation Height	Contact Shape	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Voltage Rating	Number of Positions	Insulation Color	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Material Flammability Rating	Contact Finish - Post	Fastening Type	Number of Rows	Number of Positions
TE Connectivity Raychem Cable Protection 2314918-6	0.161 in	4.1 mm	Square	Female Socket	0.079 in	2 mm	Phosphor Bronze	125 VDC	6	Black	Liquid Crystal Polymer (LCP)	0.3 µm	12 µin	2 A	30 Áin	0.76 Ám	Solder	All	Through Hole Right Angle	Gold	0.079 in	2 mm	0.083 in	2.11 mm	125 °C	-40 °C	Receptacle	UL94 V-0	Tin	Push-Pull	2

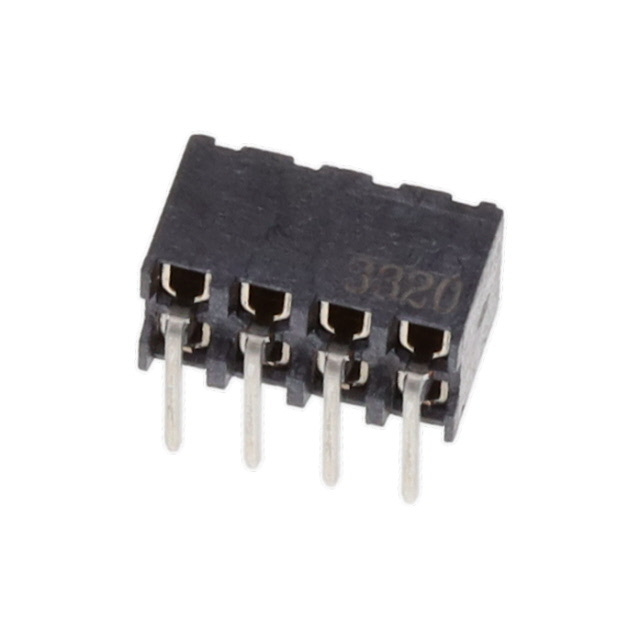

TE Connectivity Raychem Cable Protection 2314918-8	0.161 in	4.1 mm	Square	Female Socket	0.079 in	2 mm	Phosphor Bronze	125 VDC	8	Black	Liquid Crystal Polymer (LCP)	3 µm	118.1 µin	2 A	30 Áin	0.76 Ám	Solder	All	Through Hole Right Angle	Gold	0.079 in	2 mm	0.083 in	2.11 mm	125 °C	-40 °C	Receptacle	UL94 V-0	Tin	Push-Pull	2

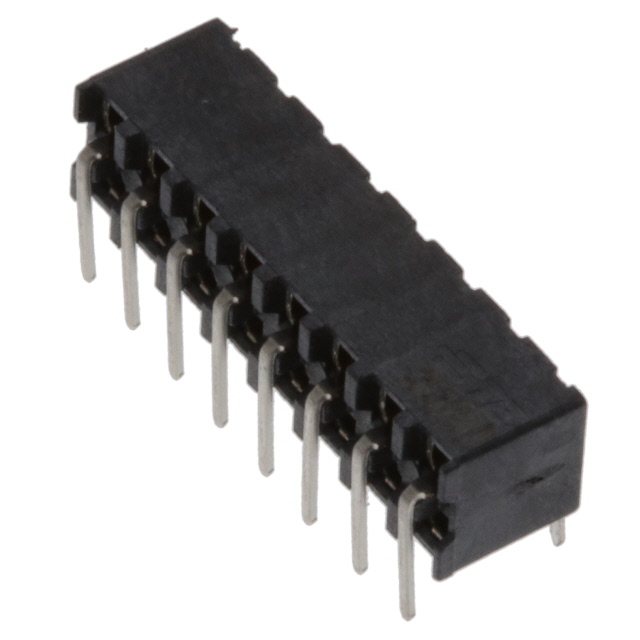

TE Connectivity Raychem Cable Protection 1-2314918-6	0.161 in	4.1 mm	Square	Female Socket	0.079 in	2 mm	Phosphor Bronze	125 VDC		Black	Liquid Crystal Polymer (LCP)	3 µm	118.1 µin	2 A	30 Áin	0.76 Ám	Solder	All	Through Hole Right Angle	Gold	0.079 in	2 mm	0.083 in	2.11 mm	125 °C	-40 °C	Receptacle	UL94 V-0	Tin	Push-Pull	2	16
TE Connectivity Raychem Cable Protection 1-2314918-4	0.161 in	4.1 mm	Square	Female Socket	0.079 in	2 mm	Phosphor Bronze	125 VDC	14	Black	Liquid Crystal Polymer (LCP)	0.3 µm	12 µin	2 A	30 Áin	0.76 Ám	Solder	All	Through Hole Right Angle	Gold	0.079 in	2 mm	0.083 in	2.11 mm	125 °C	-40 °C	Receptacle	UL94 V-0	Tin	Push-Pull	2

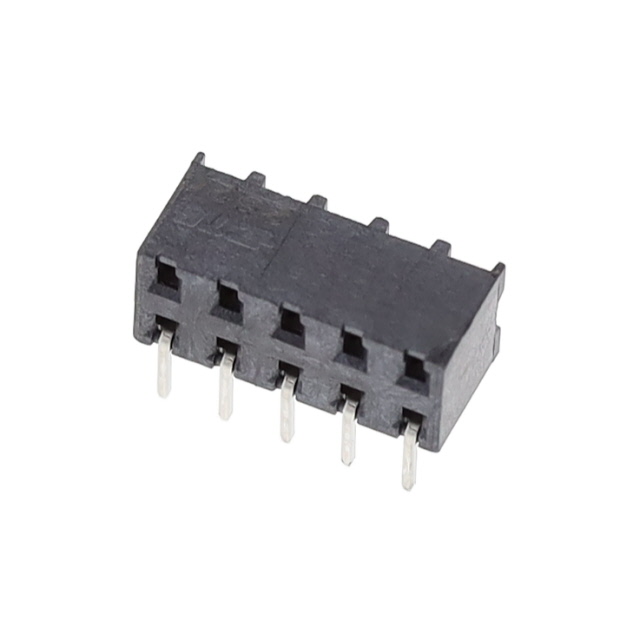

TE Connectivity Raychem Cable Protection 1-2314918-0	0.161 in	4.1 mm	Square	Female Socket	0.079 in	2 mm	Phosphor Bronze	125 VDC	10	Black	Liquid Crystal Polymer (LCP)	3 µm	118.1 µin	2 A	30 Áin	0.76 Ám	Solder	All	Through Hole Right Angle	Gold	0.079 in	2 mm	0.083 in	2.11 mm	125 °C	-40 °C	Receptacle	UL94 V-0	Tin	Push-Pull	2
