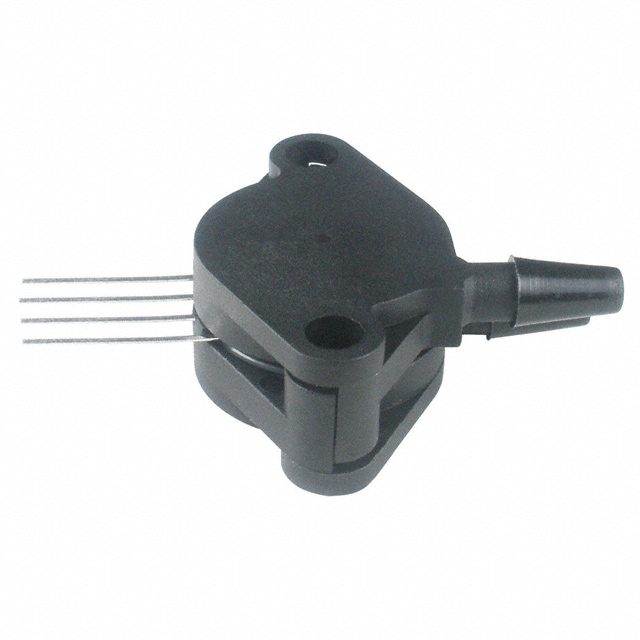

HSCSHHN Series

Catalog

SENSOR 60PSID 0.16" 4.5V 4SIP

Part	Features	Port Size	Port Size	Port Size	Port Style	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Operating Pressure	Operating Pressure	Accuracy	Maximum Pressure	Maximum Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pressure Type	Termination Style	Supplier Device Package	Applications	Package / Case	Output
Honeywell Sensing and Productivity Solutions HSCSHHN060PDAA5	Amplified Output Temperature Compensated	3.94 mm	Dual Male Tube	0.16 "	Barbed	0.5 V	4.5 V	4.75 V	5.25 V	Analog Voltage	60 PSI	413.69 kPa	0.25 %	1723.69 kPa	250 PSI	85 °C	-20 C	Through Hole	Differential	PC Pin	4-SIP	Board Mount	4-SIP Dual Ports Same Side
Honeywell Sensing and Productivity Solutions HSCSHHN010MD2A3	Amplified Output Temperature Compensated	3.94 mm	Dual Male Tube	0.16 "	Barbed			3.27 V	3.33 V	I2C	0.15 PSI	1 kPa	0.25 %	75 kPa	10.88 PSI	85 °C	-20 C	Through Hole	Differential	PC Pin	4-SIP	Board Mount	4-SIP Dual Ports Same Side	12 b
