461-BA24H Series
Manufacturer: Visual Communications Company - VCC
Beta
⌘K

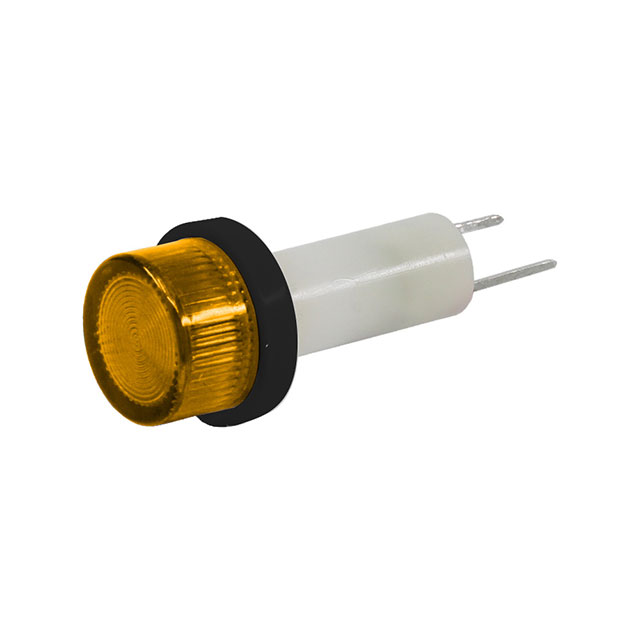

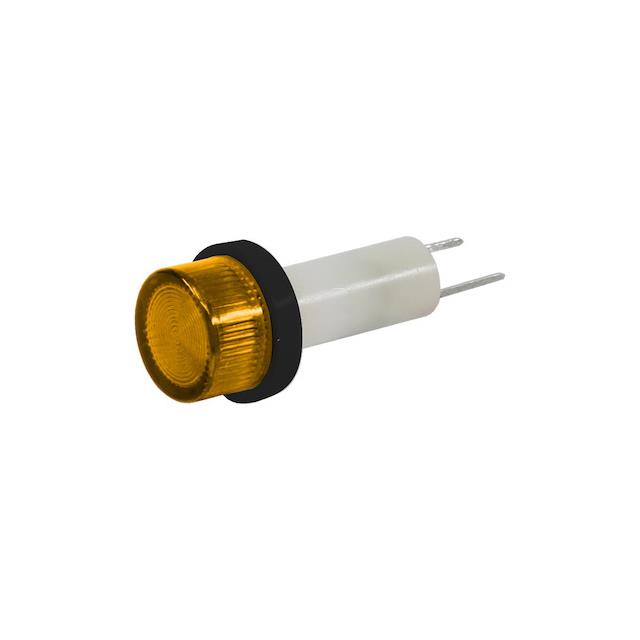

LED PMI AMBER .250 24V TAB
| Part | Wavelength - Peak | Panel Cutout Shape | Type | Current | Viewing Angle | Lens Size [diameter] | Lens Color | Millicandela Rating | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Lamp Color | Voltage | Termination Style | Lens Style | Lens Transparency | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Visual Communications Company - VCC | 583 nm | Round | LED | 20 mA | 60 ° | 9.91 mm | Yellow | 16 mcd | 6.35 mm | 0.25 in | Amber | 24 V | PC Pin | Round with Flat Top | Clear | |
 Visual Communications Company - VCC | Round | LED | 17 mA | 10 mm Dia | Smoke | 6.35 mm | 0.25 in | Amber | 24 V | PC Pin | Round with Flat Top | Diffused | DC |
