S08B-ZES Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

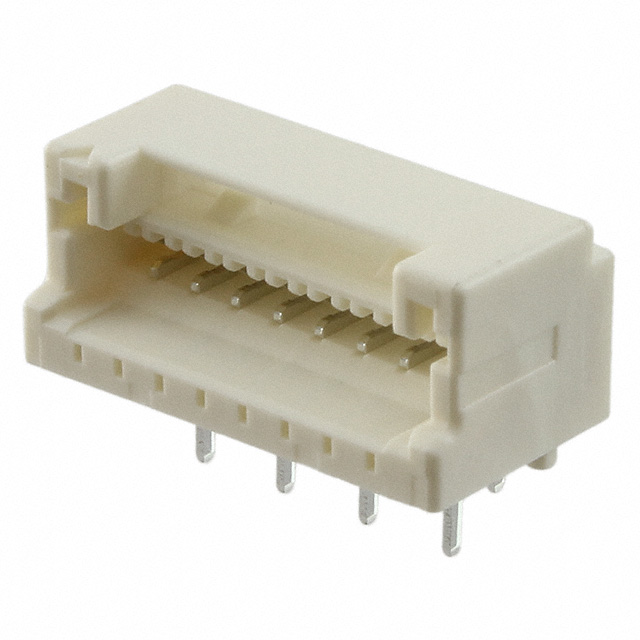

CONN HEADER R/A 8POS 1.5MM
| Part | Insulation Material | Contact Type | Shrouding | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post | Current Rating (Amps) | Voltage Rating | Contact Finish - Post | Operating Temperature [Max] | Operating Temperature [Min] | Features | Style | Mounting Type | Insulation Color | Material Flammability Rating | Number of Positions | Connector Type | Contact Material | Termination | Number of Rows | Fastening Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Glass Filled Nylon 6/6 Polyamide (PA66) | Outer Shroud Contact | Shrouded - 4 Wall | All | 0.134 " | 3.4 mm | 2 A | 100 V | Tin | 85 °C | -25 °C | Board Guide | Board to Cable/Wire | Right Angle Through Hole | Natural | UL94 V-0 | 8 | Header | Copper Alloy | Kinked Pin Solder | 1 | Locking Ramp | Rectangular |
