M22-253 Series

Catalog

CONNECTOR, HEADER, 4POS, 1ROW, 2MM ROHS COMPLIANT: YES

Part	Contact Length - Post	Contact Length - Post	Insulation Color	Fastening Type	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Shrouding	Insulation Height [z]	Insulation Height [z]	Number of Positions Loaded	Mounting Type	Termination	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Material	Number of Rows	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Finish - Post

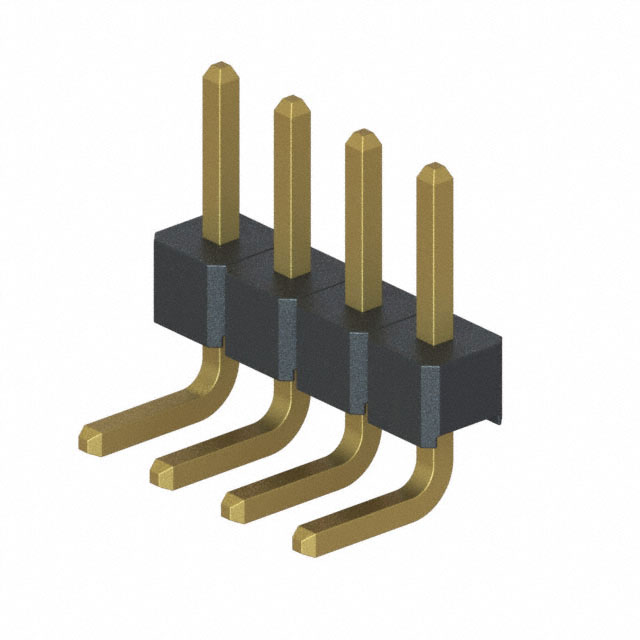

Harwin Inc. M22-2530405	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	4

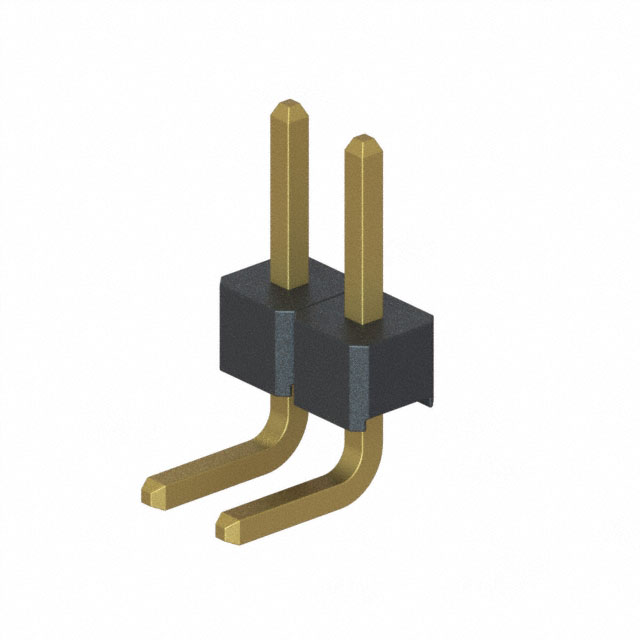

Harwin Inc. M22-2530205	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	2
Harwin Inc. M22-2530305	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm

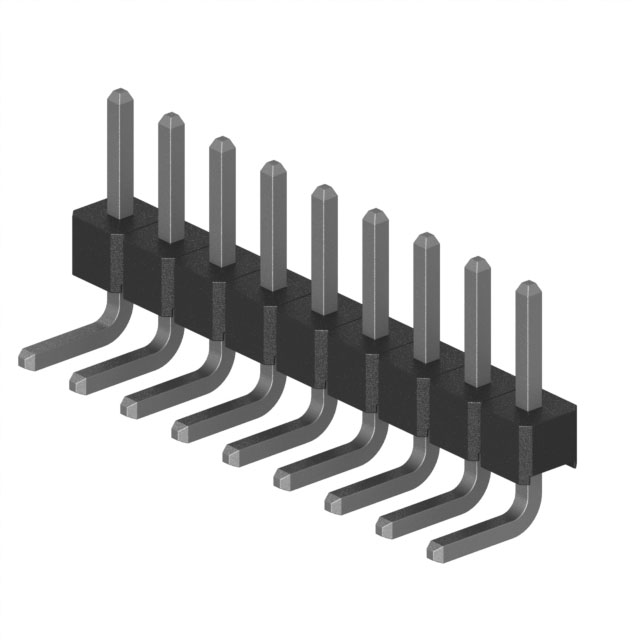

Harwin Inc. M22-2530946	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1		-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	9	Tin
Harwin Inc. M22-2531705	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm

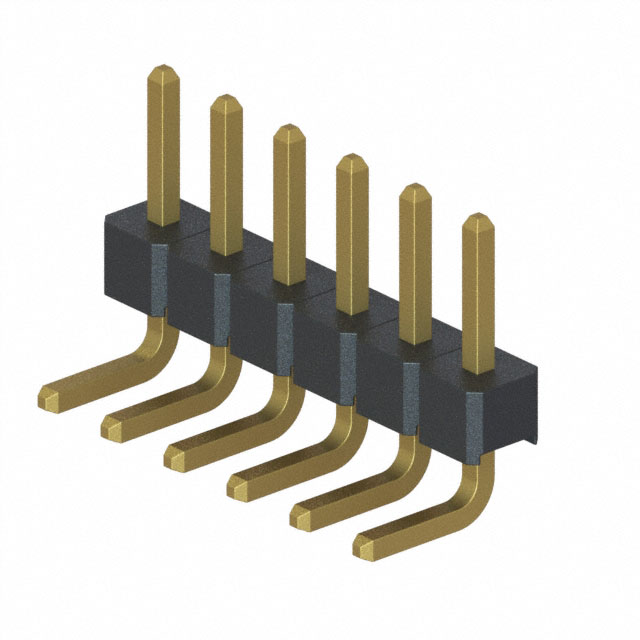

Harwin Inc. M22-2530605	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	6

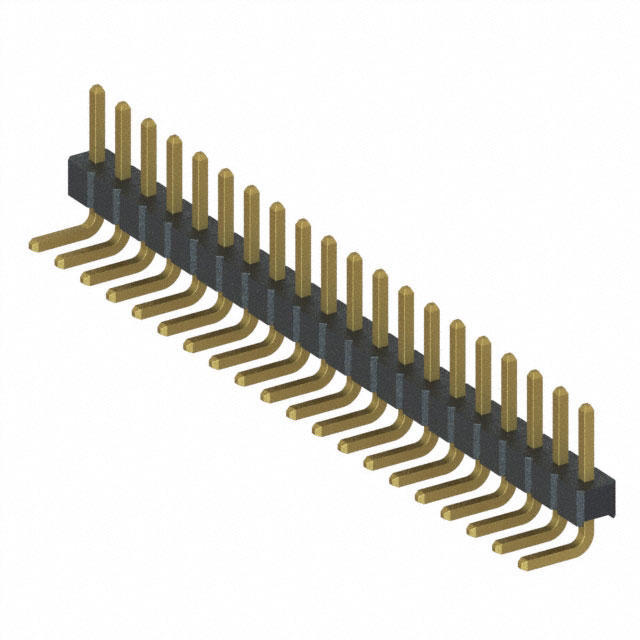

Harwin Inc. M22-2532005	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	20
Harwin Inc. M22-2530746	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1		-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	7	Tin

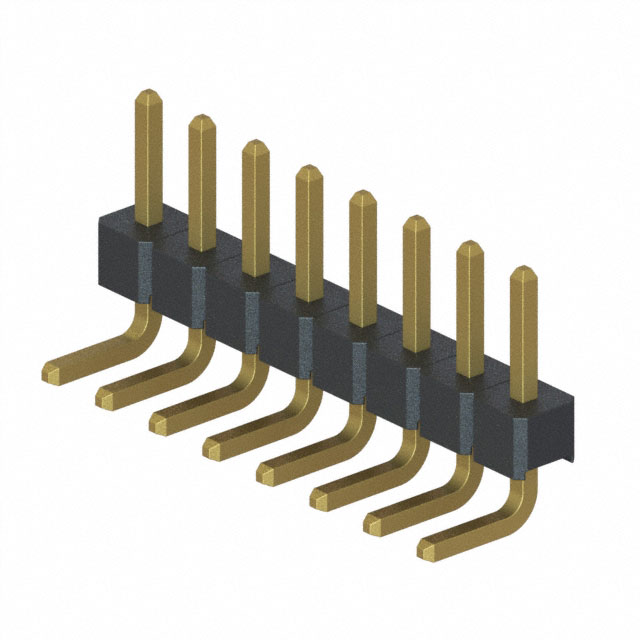

Harwin Inc. M22-2530805	2.4 mm	0.094 in	Black	Push-Pull	Nylon 6T Polyamide (PA6T)	1 A	UL94 V-0	Unshrouded	2 mm	0.079 in	All	Right Angle Through Hole	Solder	3.5 mm	0.138 in	Header Cuttable	Phosphor Bronze	1	Gold	-40 C	105 ░C	Square	Male Pin	0.079 "	2 mm	8
