2842168 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

50P,2MM,SHRD HDR,DRRT,0.76AU,TB

Part	Contact Finish - Mating	Style	Contact Material	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Voltage Rating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Type	Connector Type	Number of Rows	Current Rating (Amps)	Shrouding	Contact Length - Post	Contact Length - Post	Number of Positions	Mounting Type	Contact Length - Mating	Contact Length - Mating	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Insulation Material	Applications	Number of Positions
TE Connectivity Raychem Cable Protection 5-2842168-0	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	50	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic

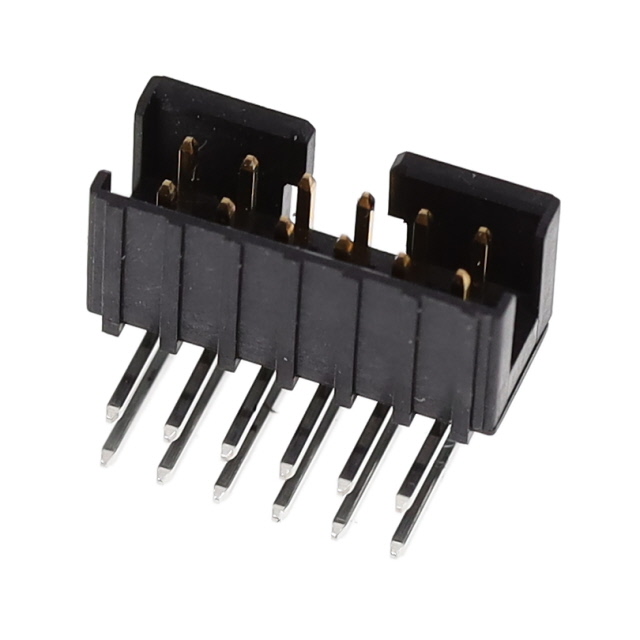

TE Connectivity Raychem Cable Protection 1-2842168-2	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	12	Through Hole Right Angle	3.7 mm	0.145 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic	General Purpose Industrial
TE Connectivity Raychem Cable Protection 2-2842168-6	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	26	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic
TE Connectivity Raychem Cable Protection 4-2842168-4	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	44	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic
TE Connectivity Raychem Cable Protection 1-2842168-4	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	14	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic
TE Connectivity Raychem Cable Protection 2-2842168-8	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	28	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic
TE Connectivity Raychem Cable Protection 4-2842168-2	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	42	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic

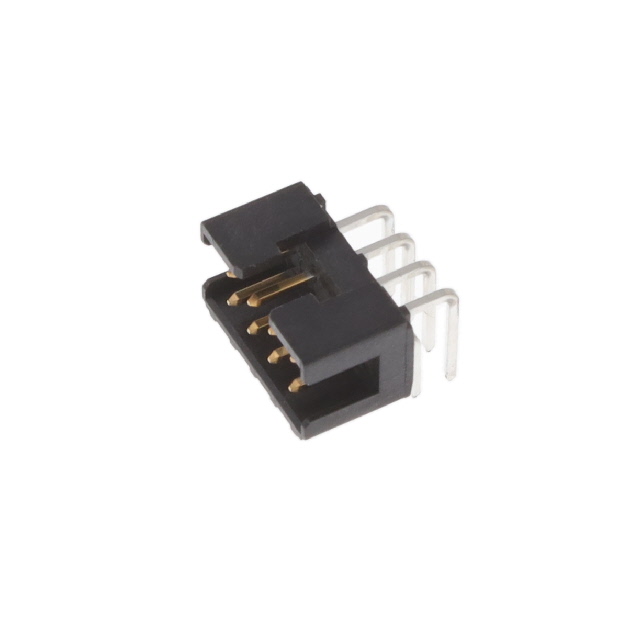

TE Connectivity Raychem Cable Protection 2842168-8	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	8	Through Hole Right Angle	3.7 mm	0.145 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic	General Purpose Industrial
TE Connectivity Raychem Cable Protection 2-2842168-0	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in	20	Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic
TE Connectivity Raychem Cable Protection 1-2842168-6	Gold	Board to Board Cable	Copper Alloy	Tin	Detent Lock	All	125 VAC	0.24 in	6.1 mm	2 çm	78.7 çin	Square	Male Pin	Header	2	2 A	Shrouded - 2 Wall	2.5 mm	0.098 in		Through Hole Right Angle	3.7 mm	0.146 in	Solder	0.079 in	2 mm	Black	30 Áin	0.76 Ám	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	Thermoplastic		16
