HW1B Series

Manufacturer: IDEC

Catalog

INDUSTRIAL PUSHBUTTON SWITCH, HW SERIES, 22 MM, SPST-NO, MAINTAINED, ROUND FLUSH, GREEN

Part	Current Rating (Amps)	Reset Operation	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Termination Style	Circuit	Mounting Type	Actuator Type	Type	Illumination	Requires
IDEC HW1B-A1P10G

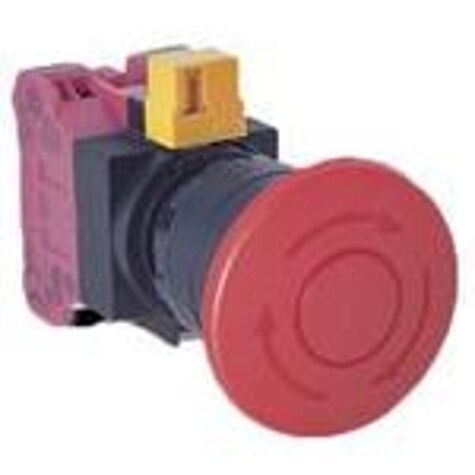

IDEC HW1B-V4F01-R	8 A 10 A	Twist	IP65 - Dust Tight Water Resistant	50 °C	-25 °C	On-Off	24 V	110 V	22.3 mm	Screw Terminal	SPST-NC	Panel Mount Front
IDEC HW1B-M1P20G
IDEC HW1B-X4R
IDEC HW1B-A2F22-Y
IDEC HW1B-A3F11-Y
IDEC HW1B-V3F01-Y	10 A	Twist	IP65 - Dust Tight Water Resistant	60 °C	-25 °C	On-Off	24 V	110 V	22.3 mm	Screw Terminal	SPST-NC	Panel Mount Front
IDEC HW1B-A1P10B
IDEC HW1B-M2F10-G-ENGRAVED
IDEC HW1B-M4-G									22.3 mm				Mushroom Pushbutton	Momentary	Non-Illuminated	Contact Block(s)
