JWM12R Series

Catalog

SWITCH ROCKER ON NONE ON SPDT QUICK CONNECT/SOLDER LUG CURVED ROCKER 10A 250VAC 25000CYCLES

Part	Electrical Life	Mechanical Life	Circuit	Termination Style	Color - Actuator/Cap	Current Rating (Amps)	Actuator Marking	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Features	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Switch Function	Approval Agency

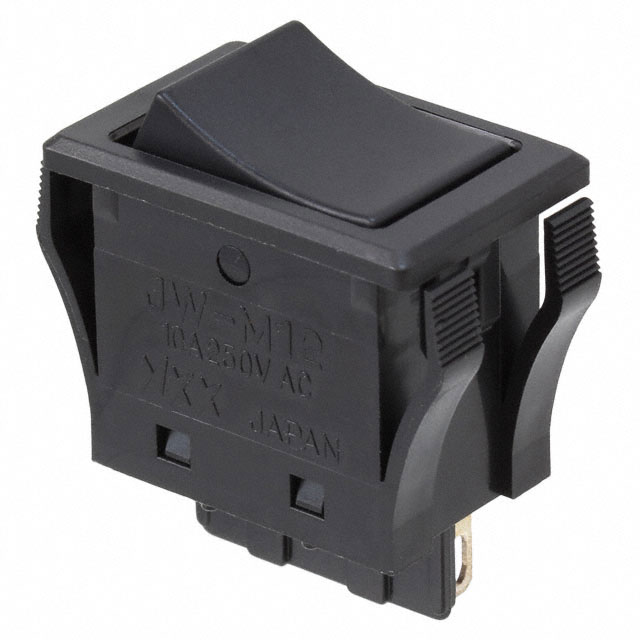

NKK Switches JWM12RAA	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)	Black	10 A	No Marking	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE

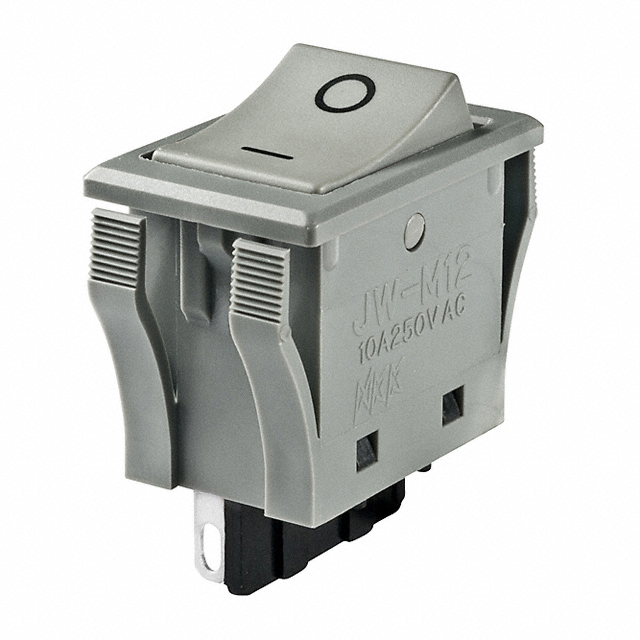

NKK Switches JWM12RH1H/UCV	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)		10 A	O I	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE
NKK Switches JWM12RBB/UCV	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)	Ivory	10 A	No Marking	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE
NKK Switches JWM12RAA/UCV	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)	Black	10 A	No Marking	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE
NKK Switches JWM12RBB	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)	Ivory	10 A	No Marking	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE
NKK Switches JWM12RA2A	25000 Steps	25000 Steps	SPDT	Solder Quick Connect - 0.110" (2.8mm)	Black	10 A	O -	15.4 mm	24 mm	Dust Proof	Epoxy Sealed Terminals	Panel Mount Snap-In	125 V	-25 °C	70 °C	Concave (Curved)	On-On	CSA UL VDE
