AWHW2 16 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

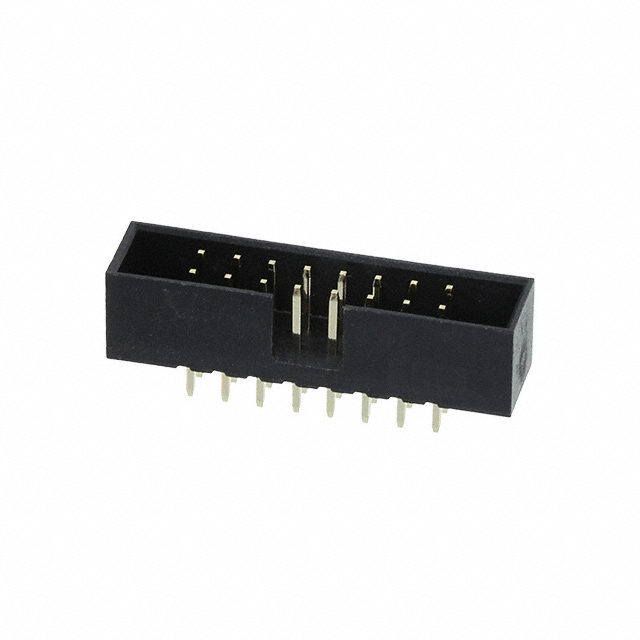

CONN HEADER VERT 16POS 2MM
| Part | Contact Type | Contact Material | Features | Insulation Color | Insulation Material | Material Flammability Rating | Number of Positions | Termination | Mounting Type | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Number of Positions Loaded | Fastening Type | Contact Length - Post [custom] | Contact Length - Post | Contact Finish - Mating | Current Rating (Amps) | Style | Connector Type | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Number of Rows [custom] | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Male Pin | Brass | Keying Slot | Black | Glass Filled Nylon 9T Polyamide (PA9T) | UL94 V-0 | 16 | Solder | Through Hole | 4 mm | 0.157 in | 2 mm | 0.079 in | All | Push-Pull | 0.11 in | 2.79 mm | Gold | 1.5 A | Board to Cable/Wire | Header | 0.079 " | 2 mm | 5.74 mm | 0.226 in | Flash | -40 C | 105 ░C | Shrouded - 4 Wall | 2 | Square |
