110-83 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN IC DIP SOCKET 14POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Termination Post Length | Termination Post Length | Contact Finish - Post | Type | Type | Type | Number of Positions or Pins (Grid) | Contact Material - Mating | Mounting Type | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Features | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Resistance | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

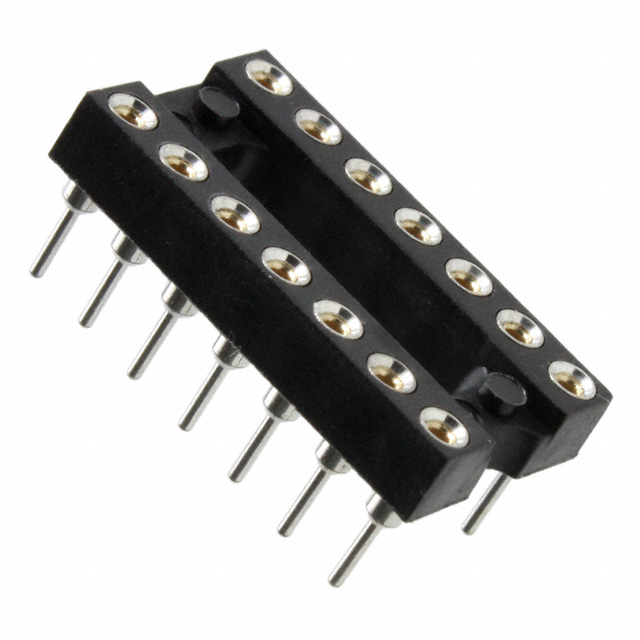

 Mill-Max Manufacturing Corp. | UL94 V-0 | 3 A | 0.125 in | 3.18 mm | Tin-Lead | 7.62 mm | 0.3 in | DIP | 14 | Beryllium Copper | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -55 C | 125 °C | Brass Alloy | 7.62 µm | 300 µin | Solder | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | 0.1 " | 2.54 mm | Open Frame | |||||

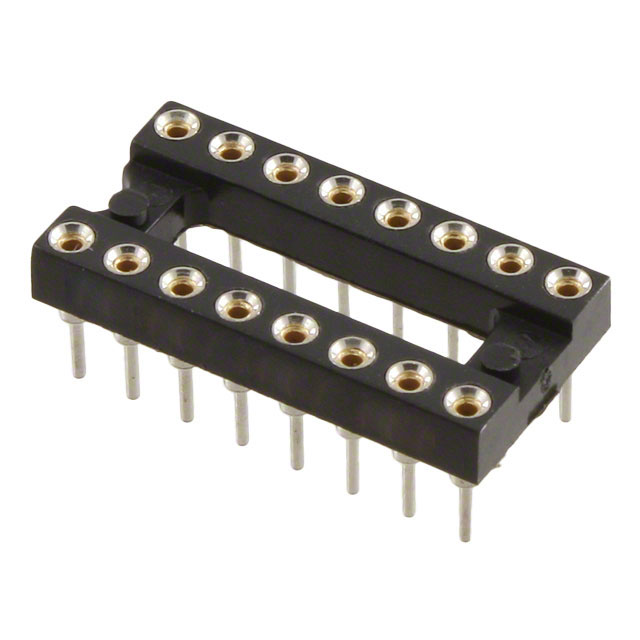

 Mill-Max Manufacturing Corp. | UL94 V-0 | 3 A | 0.125 in | 3.18 mm | Tin-Lead | 7.62 mm | 0.3 in | DIP | 16 | Beryllium Copper | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -55 C | 125 °C | Brass Alloy | 7.62 µm | 300 µin | Solder | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | 0.1 " | 2.54 mm | Open Frame | 2 | 8 | |||
 Mill-Max Manufacturing Corp. | UL94 V-0 | 3 A | 0.125 in | 3.18 mm | Tin-Lead | 7.62 mm | 0.3 in | DIP | 20 | Beryllium Copper | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -55 C | 125 °C | Brass Alloy | 7.62 µm | 300 µin | Solder | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | 0.1 " | 2.54 mm | Open Frame | 10 mOhm | ||||
Mill-Max Manufacturing Corp. | UL94 V-0 | 3 A | 0.125 in | 3.18 mm | Tin-Lead | 7.62 mm | 0.3 in | DIP | 18 | Beryllium Copper | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -55 C | 125 °C | Brass Alloy | 7.62 µm | 300 µin | Solder | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | 0.1 " | 2.54 mm | Open Frame | 10 mOhm | ||||

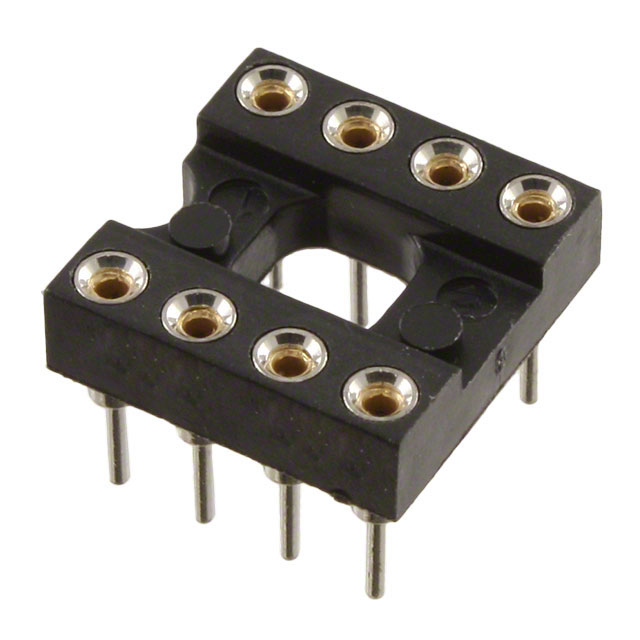

 Mill-Max Manufacturing Corp. | UL94 V-0 | 3 A | 0.125 in | 3.18 mm | Tin-Lead | 7.62 mm | 0.3 in | DIP | 8 | Beryllium Copper | Through Hole | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | -55 C | 125 °C | Brass Alloy | 7.62 µm | 300 µin | Solder | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | Gold | 0.1 " | 2.54 mm | Open Frame | 2 | 4 |
