LV491 Series
Manufacturer: ON Semiconductor
Beta
⌘K
IC AMP CLASS D STER 15W 44SSOPJ
| Part | Type | Features | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type | Supplier Device Package | Package / Case [x] | Package / Case | Package / Case [y] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Max Output Power x Channels @ Load |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | Class D | Mute Short-Circuit and Thermal Protection Standby | 9 V | 18 V | 2-Channel (Stereo) with Stereo Headphones | 44-SSOPJ | 0.22 in | 44-LSSOP Exposed Pad | 5.6 mm | -25 °C | 75 °C | Surface Mount | 15 W 72 mW |

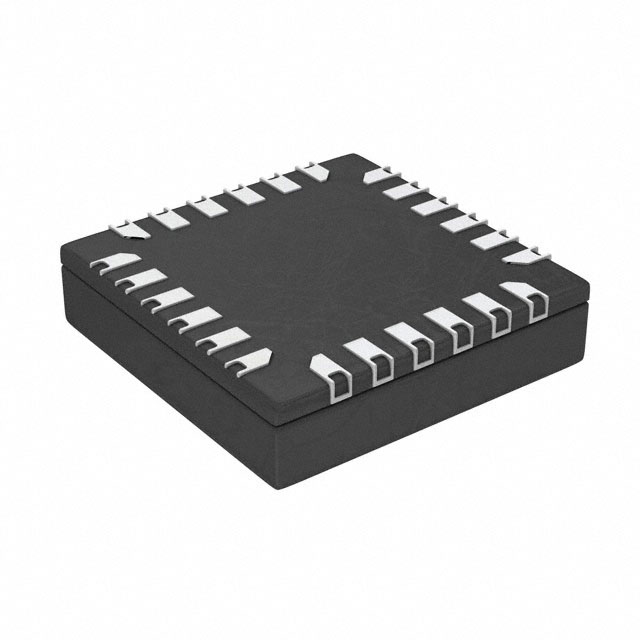

 ON Semiconductor | Class D | Mute Short-Circuit and Thermal Protection Standby | 2.7 V | 5.5 V | 1-Channel (Mono) | 24-VCT (3.5x3.5) | 24-WFQFN | -20 °C | 75 °C | Surface Mount | 1 2 W 4 Ohm |
